Product Overview
In this project, the hysteresis behavior of a steel plate shear wall with coupling (SPSW-WC) is investigated using Abaqus.
The system consists of a pair of steel plate shear wall piers connected by coupling beams at the floor levels. The numerical model is developed based on the configuration of the FLEX specimen tested in the reference experimental study.
Cyclic loading is applied to the top of the shear wall, and the resulting hysteresis response is obtained from the Abaqus analysis.
Model Description

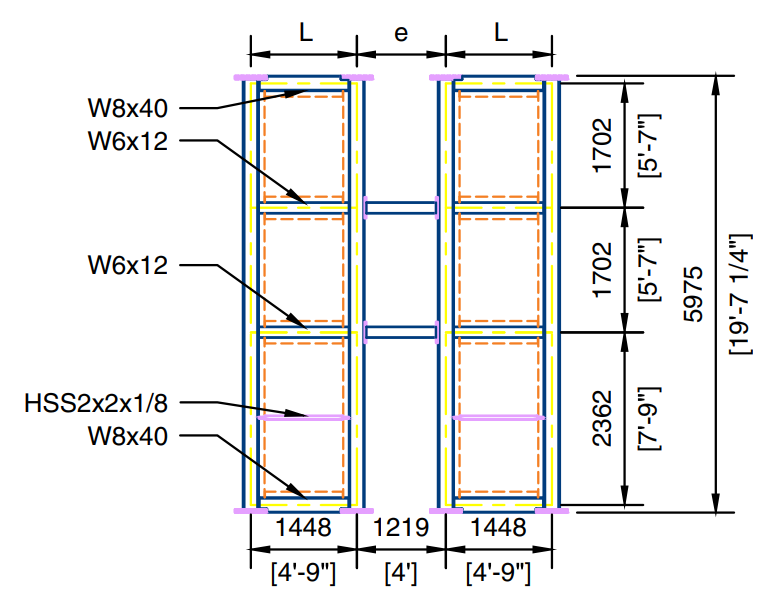

The model represents a steel plate shear wall with coupling based on the configuration used in the reference experimental study.
The main structural components include columns, beams, RBS beams, coupling beams, HSS members, steel plates, and fins.
The model represents the three-story experimental specimen, with the geometry, material properties, interactions, boundary conditions, and analysis settings defined in Abaqus based on the reference study.
Buckling Analysis and Initial Imperfection
The project consists of two main analysis stages: buckling analysis and hysteresis analysis.
First, a buckling analysis is performed to determine the buckling modes of the shear wall.
The obtained buckling modes are then used to introduce an initial geometric imperfection into the numerical model.
This approach helps the numerical model better represent the initial imperfections of the experimental specimen.
Cyclic Loading
Cyclic loading is applied to the top of the shear wall according to the loading protocol used in the reference study.
The loading history is defined using the Amplitude option in Abaqus.
The structure is then analyzed under repeated loading and unloading cycles to investigate its nonlinear hysteretic behavior.

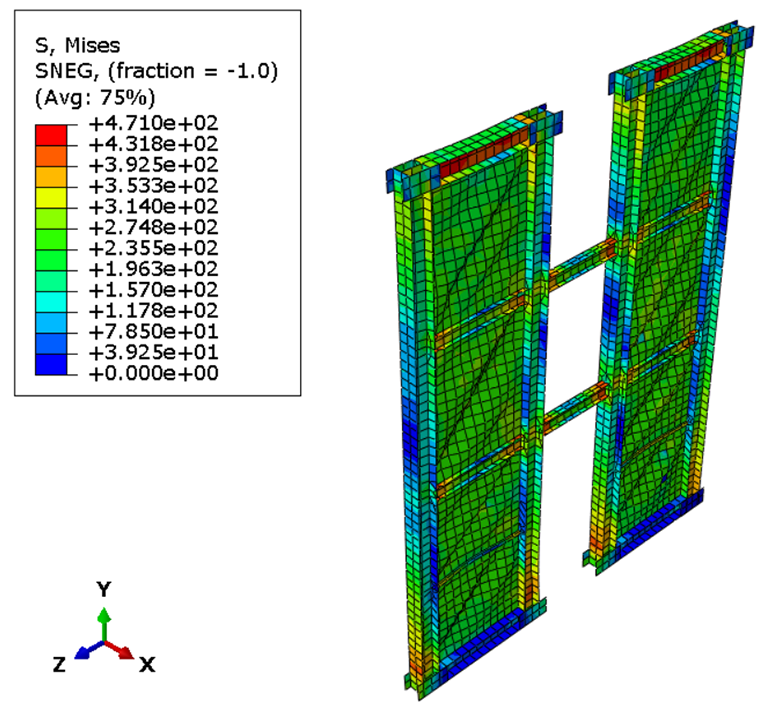

Deformation Under Cyclic Loading
The deformation of the shear wall during the cyclic loading analysis is investigated using the Abaqus results.
The numerical results are used to evaluate the deformation pattern and nonlinear response of the coupled shear wall during the loading cycles.
Coupling Beam Behavior
The coupling beams play an important role in the structural response of the coupled steel plate shear wall.
In the FLEX specimen, the coupling beams undergo significant flexural deformation as the lateral displacement increases during cyclic loading, leading to the formation of plastic hinge regions near their ends.
The Abaqus results are used to investigate the deformation, plastic hinge formation, and nonlinear response of the coupling beams under cyclic loading.

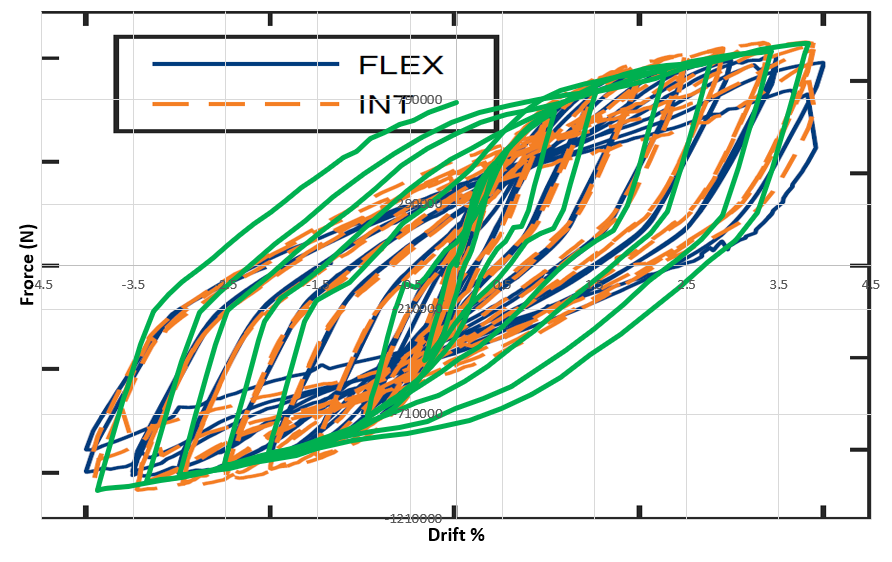

Results and Hysteresis Response
The force and displacement results are extracted from Abaqus after completing the cyclic loading analysis.
These results are processed to obtain the force–drift hysteresis diagram of the coupled steel plate shear wall.
The hysteresis response provides information about the nonlinear behavior of the structure during repeated loading and unloading cycles.
Experimental Validation
The numerical results obtained from Abaqus are compared with the experimental results reported in the reference paper.
The comparison focuses on the force–drift hysteresis response and the overall structural behavior under cyclic loading.
The Abaqus results show good agreement with the experimental results, demonstrating that the numerical model can reproduce the main hysteretic behavior of the experimental specimen.
Key Features
- Hysteresis analysis of a coupled steel plate shear wall.
- Modeling of columns and beams.
- Modeling of RBS beams and coupling beams.
- Modeling of HSS members, steel plates, and fins.
- Buckling analysis and extraction of buckling modes.
- Initial geometric imperfection based on buckling modes.
- Cyclic loading using the Amplitude option.
- Nonlinear hysteresis analysis.
- Force–drift hysteresis response.
- Comparison with experimental results.
- Complete Abaqus model files.
- Excel file for amplitude loading.
- Excel file containing numerical results.
- Research paper.
- Step-by-step video tutorial.
What You Will Learn
- How to model a coupled steel plate shear wall in Abaqus.
- How to model columns, beams, RBS beams, and coupling beams.
- How to model HSS members, steel plates, and fins.
- How to define the geometry and material properties of the model.
- How to define the required interactions and constraints.
- How to define the boundary conditions.
- How to perform a buckling analysis.
- How to extract buckling modes from Abaqus.
- How to define an initial geometric imperfection using buckling modes.
- How to define cyclic loading using the Amplitude option in Abaqus.
- How to perform nonlinear analysis under cyclic loading.
- How to obtain a force–drift hysteresis diagram.
- How to extract and process Abaqus results using Excel.
- How to compare numerical and experimental results.

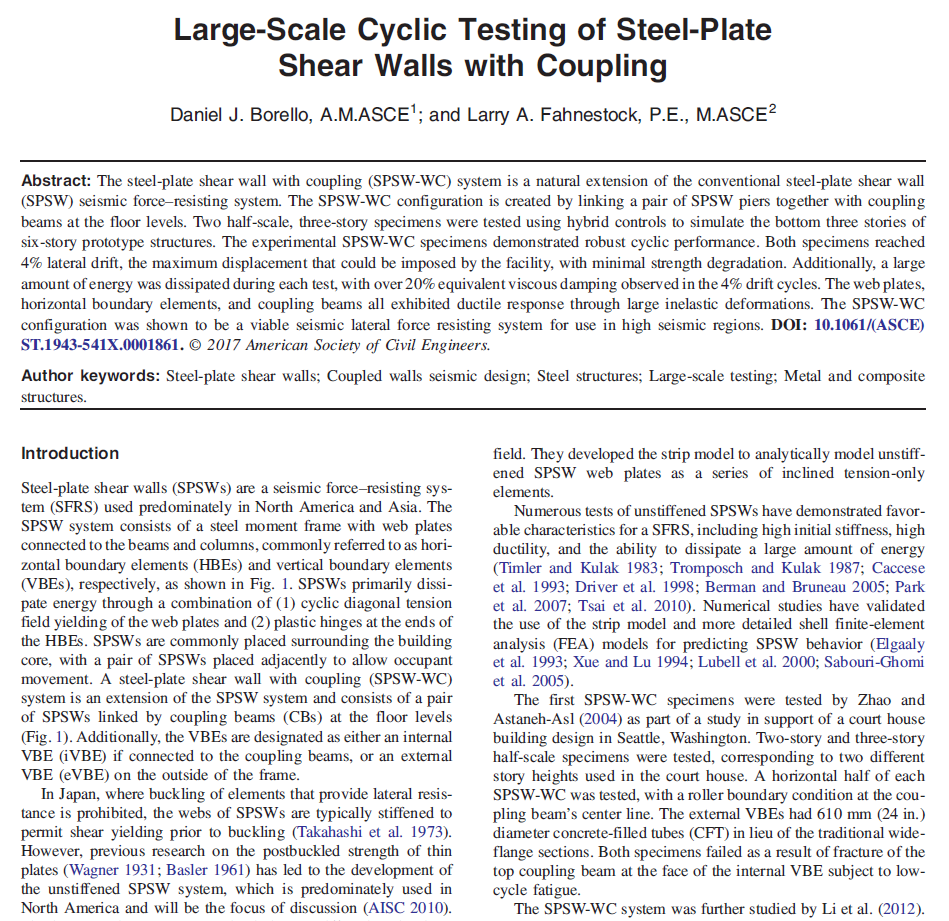

Reference
This project is based on the experimental study provided in the reference research paper.
The paper is included with the project files and can be used to review the experimental configuration, loading protocol, and reported results.
