Hysteresis analysis of the steel shear wall with opening Abaqus
This project includes full video (step by step) – Cae file – inp file – Excel files and paper
Description
Hysteresis analysis of the steel shear wall with opening Abaqus
In this example we intend to simulate the hysteresis analysis of the steel shear wall with opening in the Abaqus software
In this example, a cyclic loading is applied to the upper beam and then the hysteresis diagram of the shear wall will be drawn
This problem consists of two parts: 1- buckling analysis 2- hysteresis analysis
First, buckling analysis is performed and buckling modes are extracted. Then, the initial imperfection is defined using buckling modes
As you observe in this picture, the shear wall is composed of two RBS beams, two columns, one plate and a few stiffeners
In this picture, the hysteresis diagram gained from the Abaqus software has been compared with the experimental results
As you observe, the results gained from the Abaqus software are concordant with those mentioned in the article and their results are identical

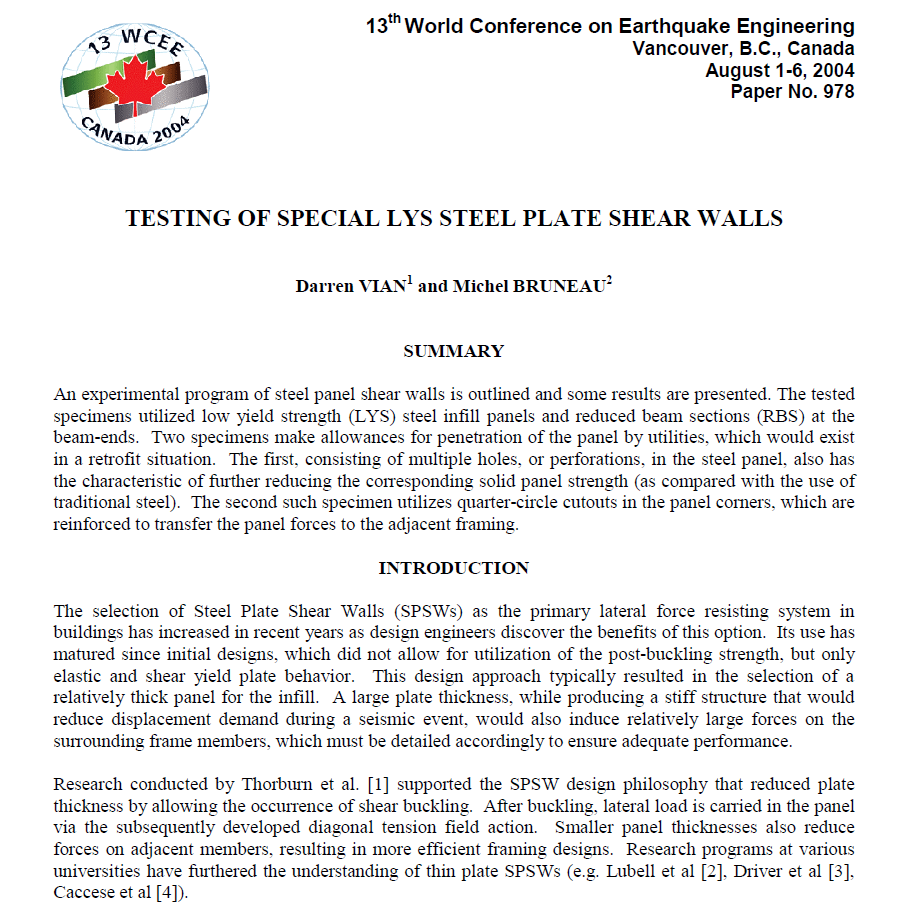

Actually we intend to simulate this article in the Abaqus software. The article is titled ‘’ Testing of Special LYS Steel Plate Walls’
This project has been validated, which means that the results obtained from Abaqus software are similar to the results of the article. In other words, this project is based on the article
Information about this tutorial |
|
|---|---|
Full video (Step by step) Cae file inp file Excel file (Amplitude loading) Excel file (Results) Paper (Article) | You will receive these files after purchase |
English | The language of the video |
Is 61 minutes | Duration of the video |
Is 670 MB | Size of all files |
Full HD, 1080p | Video quality |
After payment, the download link will be sent to your email immediately | Method of receiving |
Method 1 (Visa Card/MasterCard) : You can buy online using Visa Card and MasterCard Method 2 (PayPal) : Contact us by email to purchase with PayPal | Payment Method |
$ 12 | Price |
Email : saeedofmoeini@gmail.com | Contact us |
