Metallic box- shaped damper under cyclic loading Abaqus
In this example, we intend to simulate metallic box- shaped damper under cyclic loading in the Abaqus software

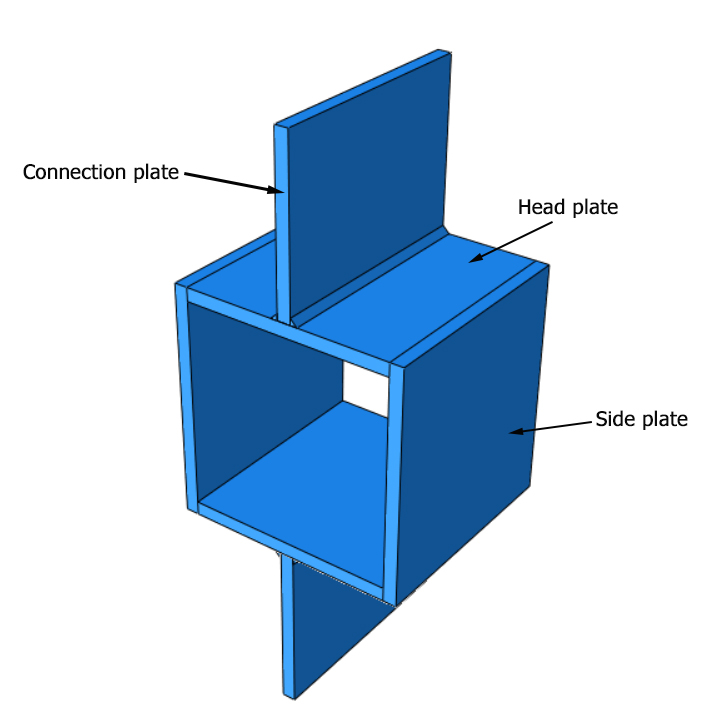

In the right picture, the laboratory Model and in the left picture, the Model having been simulated in the Abaqus software can be observed
In this problem, a cyclic loading is applied to the damper and then the hysteresis diagram of the Model will be drawn

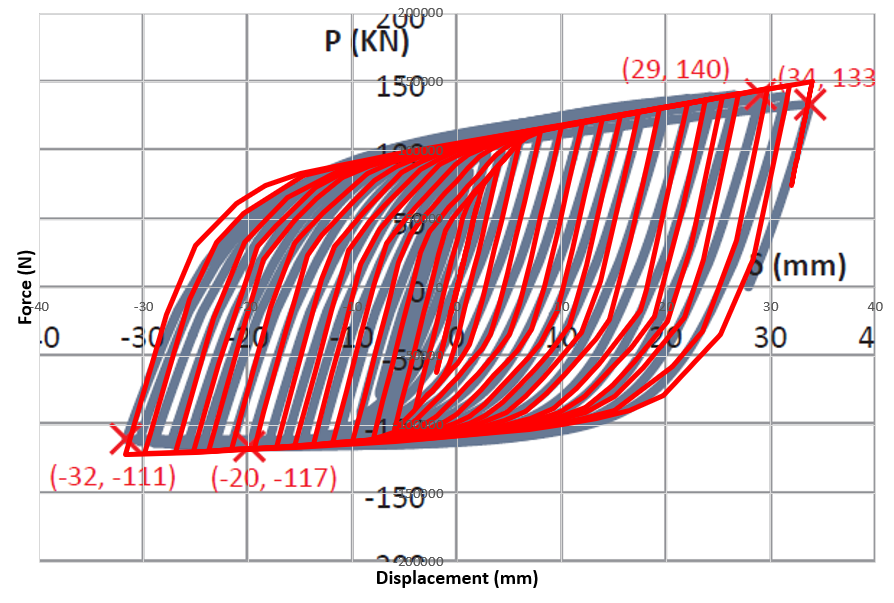

In this picture, the hysteresis diagram obtained from the Abaqus software has been compared with the laboratory results

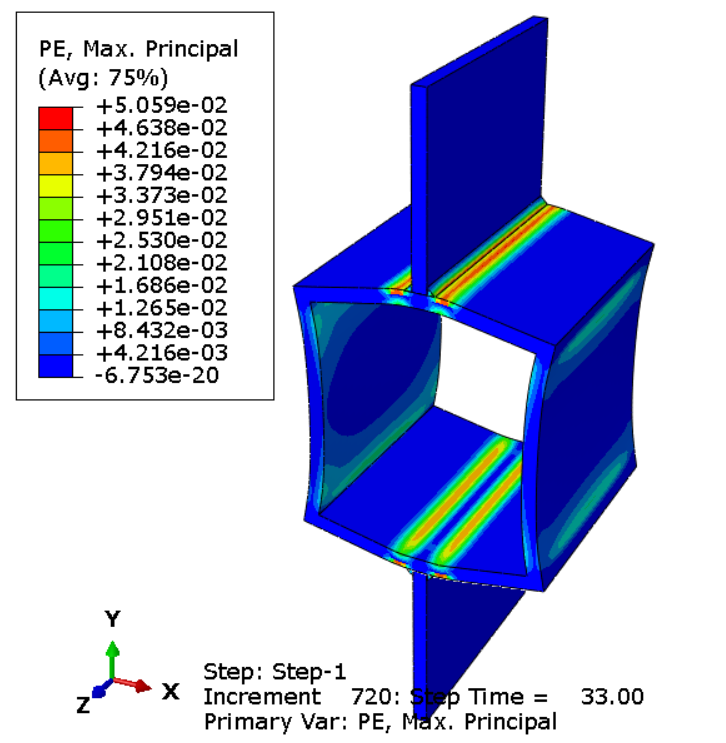

In this picture, the deformation of the Damper under cyclic loading can be observed
This project has been validated, which means that the results obtained from Abaqus software are similar to the results of the article. In other words, this project is based on the article
Information about this tutorial |
|
|---|---|
You will receive these files after purchase | Full video (Step by step) Cae file inp file Excel file (Amplitude loading) Excel file (Materials) Excel file (Results) Paper (Article) |
The language of the video | English |
Duration of the video | Is 26 minutes |
Size of all files | Is 222 MB |
Video quality | Full HD, 1080p |
Method of receiving | After payment, the download link will be sent to your email immediately |
Payment Method | Method 1 (Visa Card/MasterCard) : You can buy online using Visa Card and MasterCard Method 2 (PayPal) : Contact us by email to purchase with PayPal |
Price | $ 8 |
Contact us | Email : saeedofmoeini@gmail.com |
