Testing of seismic damper with replaceable U-shaped steel plates Abaqus

Product Overview

In this example, we intend to simulate the testing of a seismic damper with replaceable U-shaped steel plates in the Abaqus software.

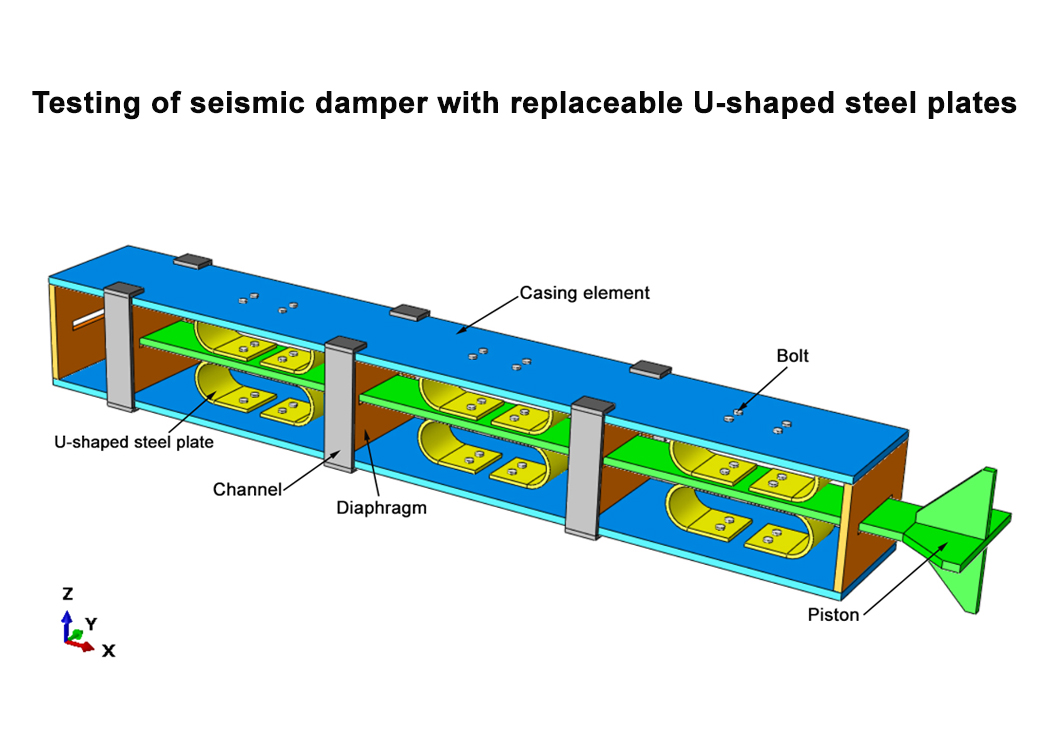

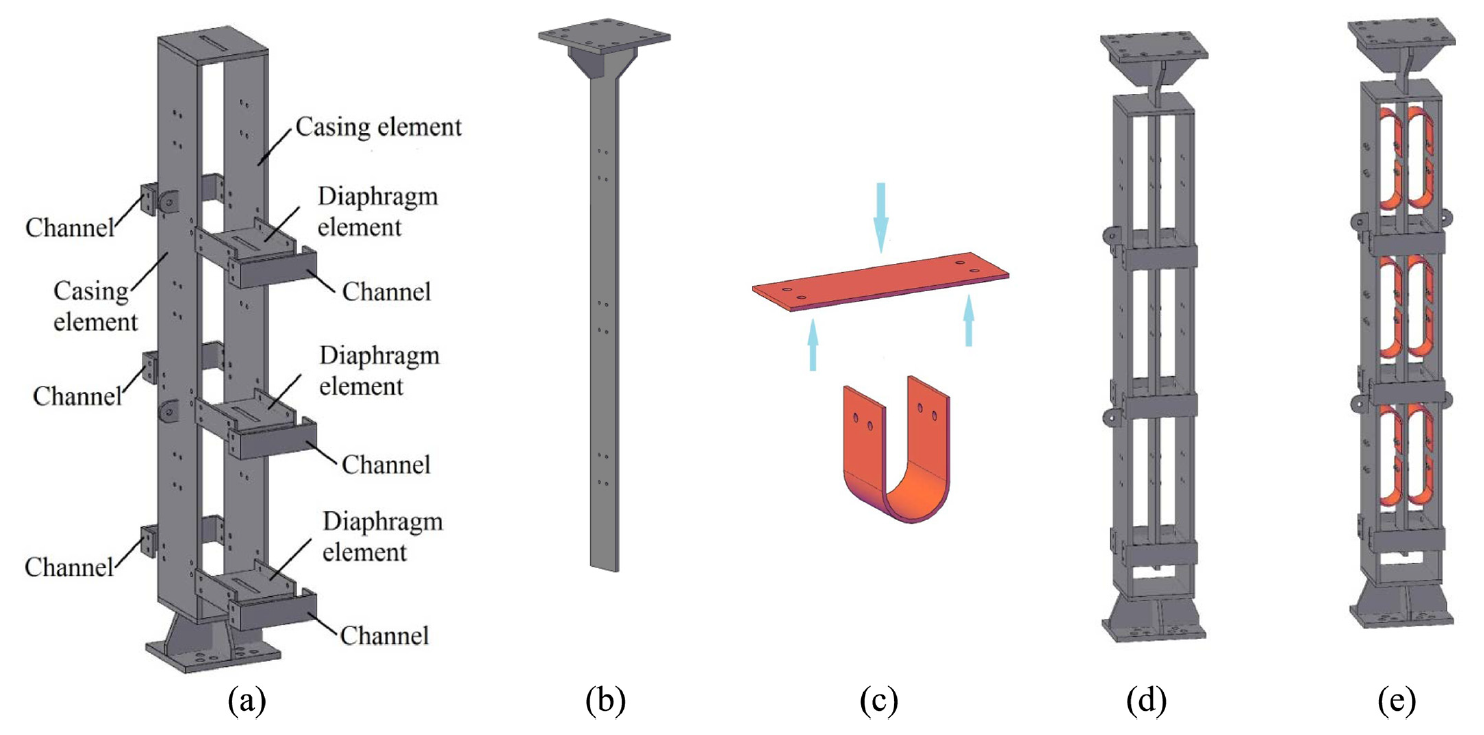

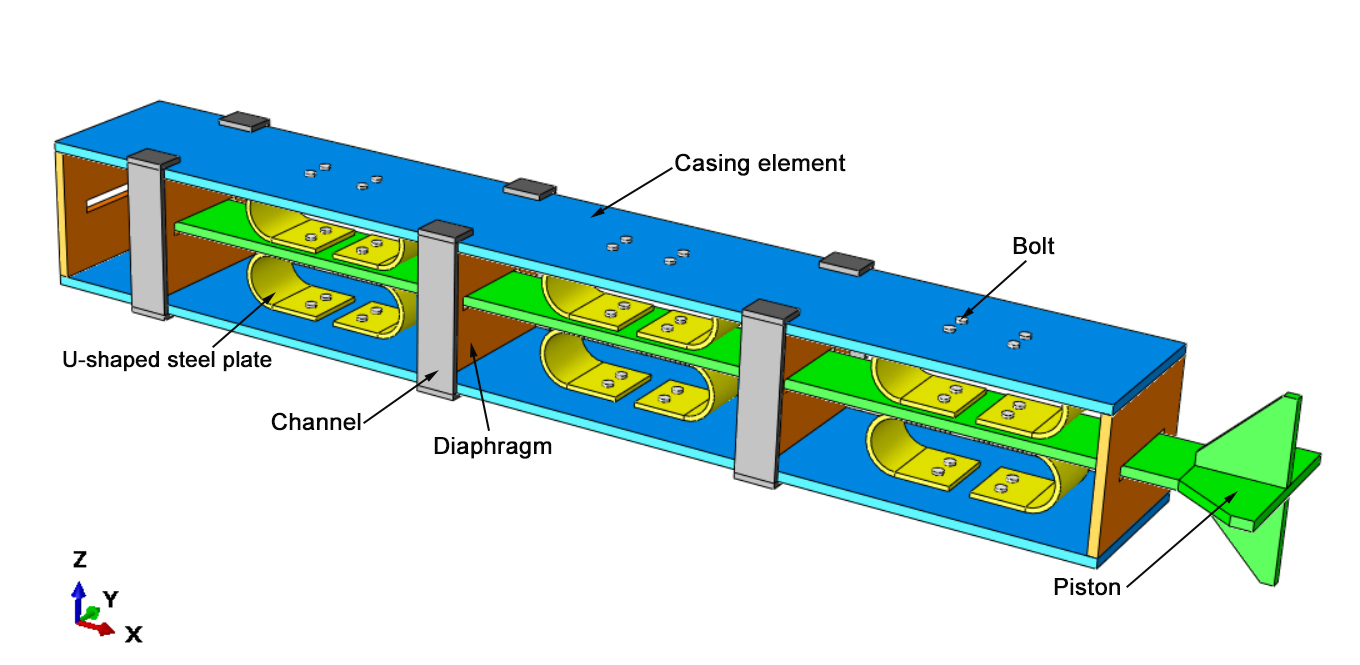

As you observe in the picture, the model is composed of U-shaped steel plates, casing element, channel, bolts, diaphragm, and piston.

Test Setup

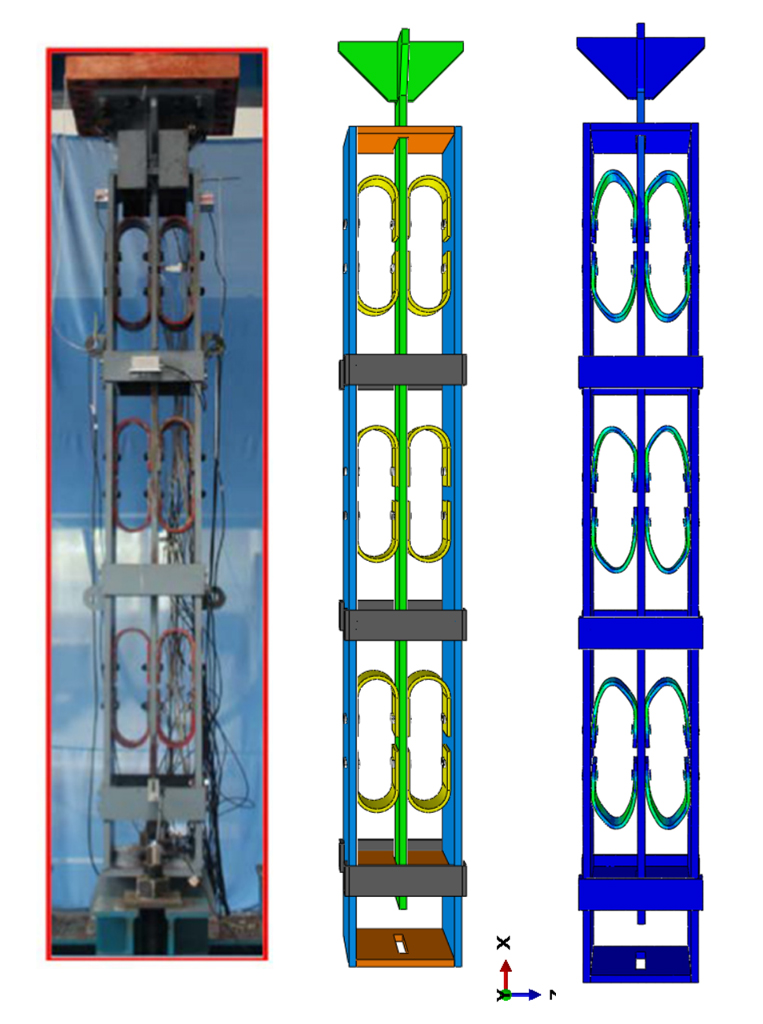

The test setup used in the experimental study can be observed in the following picture.

In the left picture, the laboratory model can be observed, while in the right picture, the sample simulated in the Abaqus software is presented.

Cyclic Loading

In this problem, cyclic loading is applied to the model, and then its hysteresis diagram is obtained.

The cyclic loading history is defined using the corresponding amplitude data in Abaqus.

Force-Displacement Hysteresis Diagram

After applying the cyclic loading, the Force-Displacement hysteresis diagram is obtained from the Abaqus results.

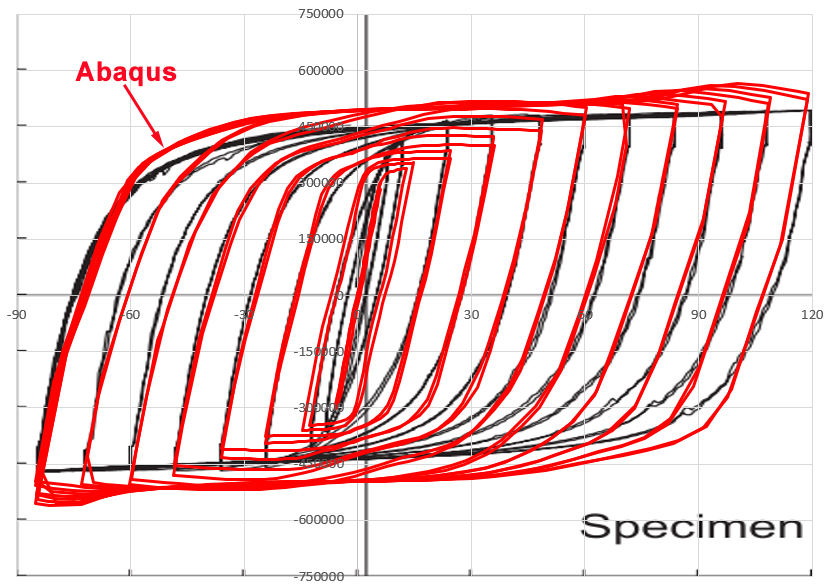

In this picture, the Force-Displacement hysteresis diagram obtained from the Abaqus software is compared with the experimental results.

Deformation of the Model

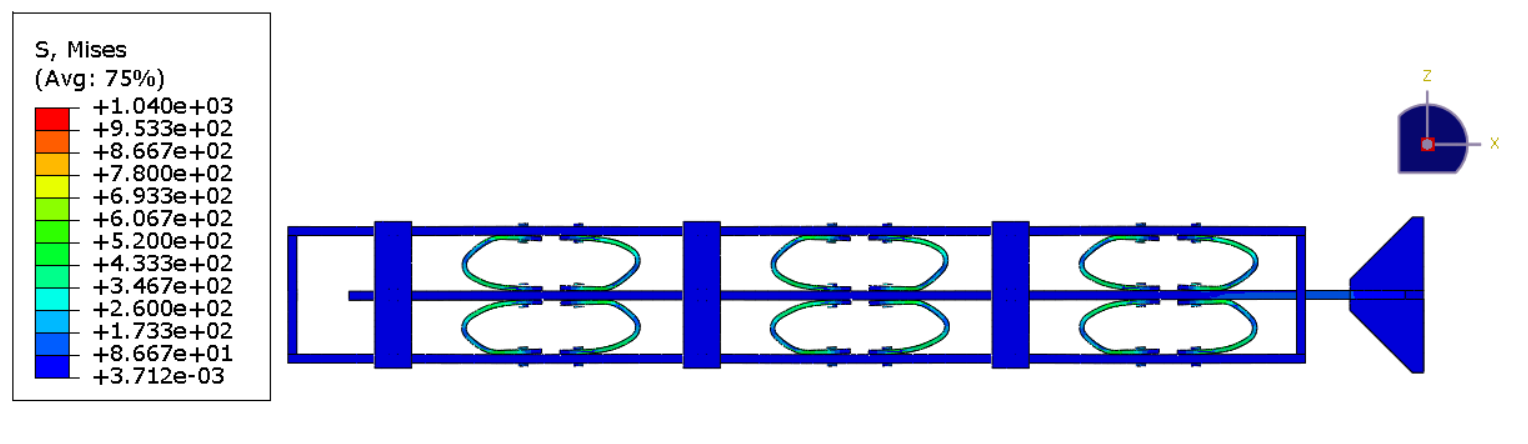

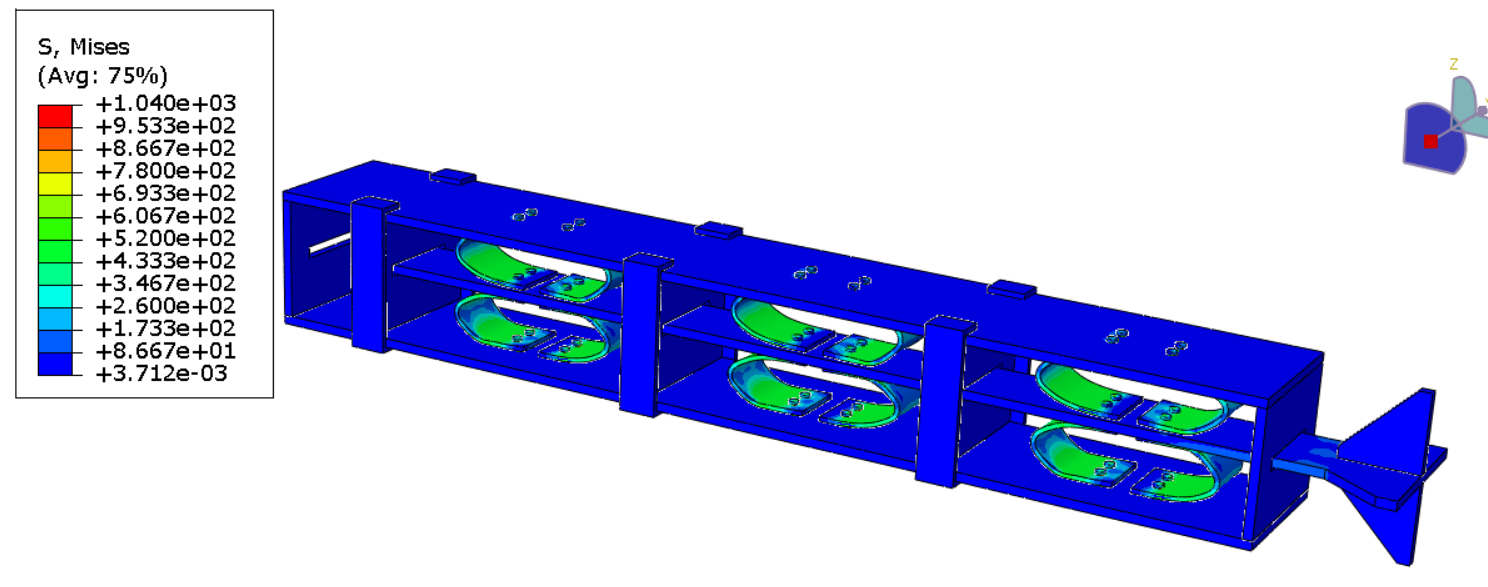

The deformation of the model under cyclic loading can be observed in the following picture.

Validation

This project has been validated, which means that the results obtained from the Abaqus software are similar to the results reported in the article.

In other words, this project is based on the reference article, and the numerical model has been developed to reproduce the experimental behavior of the seismic damper with replaceable U-shaped steel plates.

What You Will Learn

• How to model a seismic damper with replaceable U-shaped steel plates in Abaqus.
• How to model U-shaped steel plates.
• How to model the casing element, channel, bolts, diaphragm, and piston.
• How to assemble the components of the damper.
• How to define the material properties.
• How to define the boundary conditions.
• How to apply cyclic loading.
• How to define the cyclic loading amplitude.
• How to obtain the Displacement-Force hysteresis diagram.
• How to investigate the deformation of the damper under cyclic loading.
• How to compare Abaqus results with experimental results.
• How to validate the numerical model using the reference article.

Key Features

• Seismic damper with replaceable U-shaped steel plates.
• U-shaped steel plate modeling in Abaqus.
• Cyclic loading analysis.
• Displacement-Force hysteresis analysis.
• Deformation analysis under cyclic loading.
• Comparison between Abaqus and experimental results.
• Validation against the reference article.
• Complete Abaqus CAE file.
• Abaqus INP file.
• Excel amplitude loading file.
• Excel results file.
• Reference research paper.
• Step-by-step video tutorial.

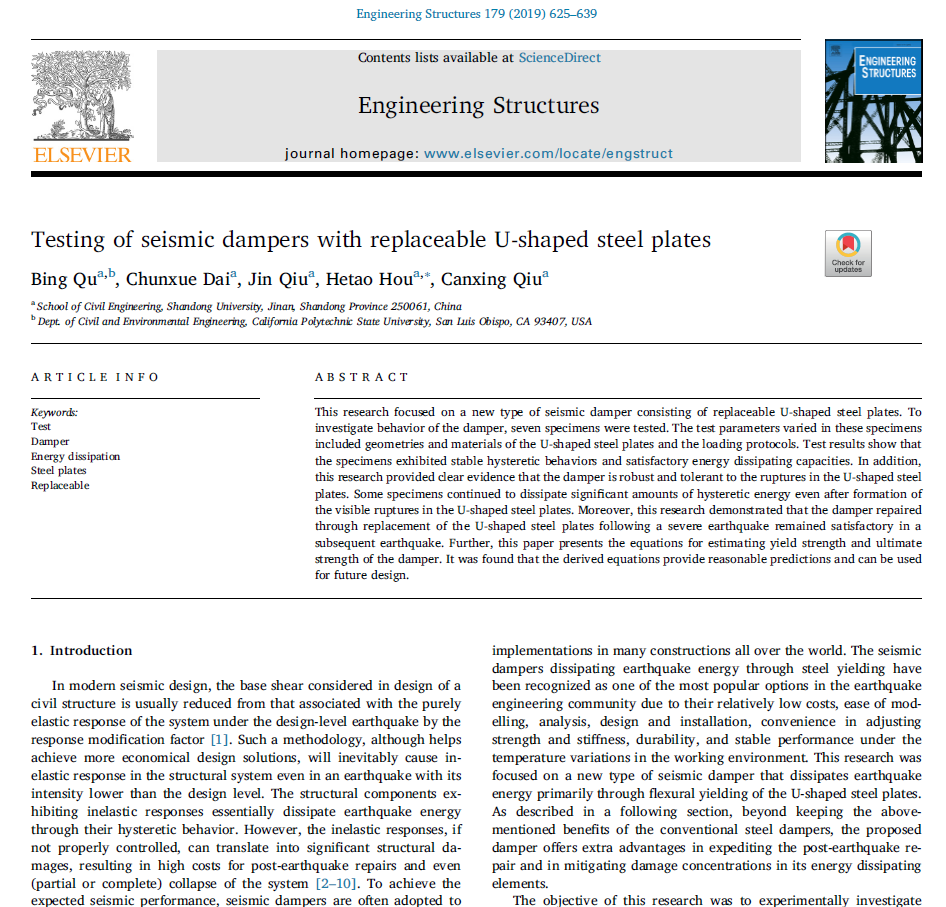

Reference

This project is based on the reference research article. The paper is included with the project files and can be used to review the experimental model, cyclic loading protocol, and reported results.
