Carbon steel slit damper under cyclic loading Abaqus

Product Overview

In this example, we intend to simulate a carbon steel slit damper under cyclic loading in the Abaqus software.

In the right picture, the laboratory model and in the left picture, the model simulated in the Abaqus software can be observed.

In this project, the slit damper is the CS1D-G2 specimen, which is made of SS275 carbon steel. The specimen has a nominal thickness of 12 mm, a measured strut width of approximately 40.81 mm, and six steel strips.

Slit Damper

A steel slit damper is an energy dissipation device used in seismic-resistant structures. Its steel strips undergo repeated deformation under cyclic loading to dissipate energy.

In this project, the damper is made of SS275 carbon steel, and its cyclic behavior is investigated through numerical simulation and comparison with experimental results.

Cyclic Loading

A cyclic loading is applied to the top of the damper to investigate its behavior under repeated loading cycles.

The loading history is defined in Abaqus using an amplitude curve, allowing the prescribed displacement to be applied according to the experimental loading protocol.

The response of the damper is recorded throughout the loading cycles and used to evaluate its cyclic behavior and energy dissipation.

Energy Dissipation

One of the main functions of a slit damper is to dissipate energy through the repeated plastic deformation of its steel strips during cyclic loading.

The force–displacement hysteresis response obtained from Abaqus can be used to evaluate the energy dissipated by the damper during the loading cycles.

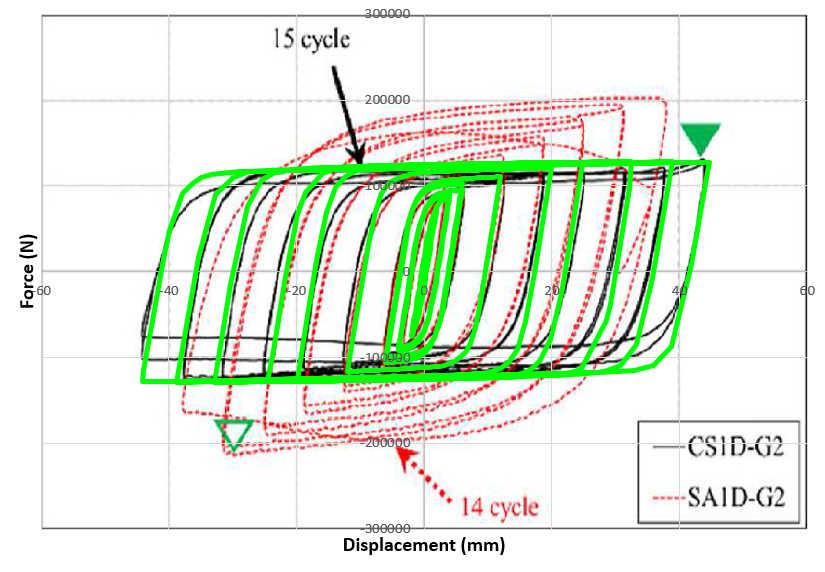

Comparison of Abaqus and Laboratory Results

The force–displacement hysteresis response obtained from Abaqus is compared with the laboratory results reported in the reference study.

The hysteresis response is used to evaluate the damper's strength, deformation behavior, and energy dissipation during repeated loading cycles.

This comparison is used to evaluate how well the numerical model reproduces the experimental behavior of the carbon steel slit damper under cyclic loading.

Validation

This project has been validated, which means that the results obtained from the Abaqus software are similar to the results reported in the article.

In other words, this project is based on the reference article and the numerical model has been developed to reproduce the behavior of the carbon steel slit damper under cyclic loading.

What You Will Learn

• How to model a carbon steel slit damper in Abaqus.
• How to define the material properties of SS275 steel.
• How to assemble the damper model.
• How to define the boundary conditions.
• How to apply cyclic loading to the damper.
• How to define the cyclic loading amplitude.
• How to obtain the hysteresis diagram from Abaqus.
• How to compare the Abaqus results with laboratory results.
• How to validate the numerical model using the reference article.

Key Features

• Carbon steel slit damper modeling in Abaqus.
• SS275 material definition.
• Cyclic loading analysis.
• Cyclic loading amplitude definition.
• Hysteresis diagram obtained from Abaqus.
• Comparison between Abaqus and laboratory results.
• Validation against the reference article.
• Complete Abaqus CAE file.
• Abaqus INP file.
• Excel amplitude loading file.
• Excel SS275 material file.
• Excel results file.
• Reference research paper.
• Step-by-step video tutorial.

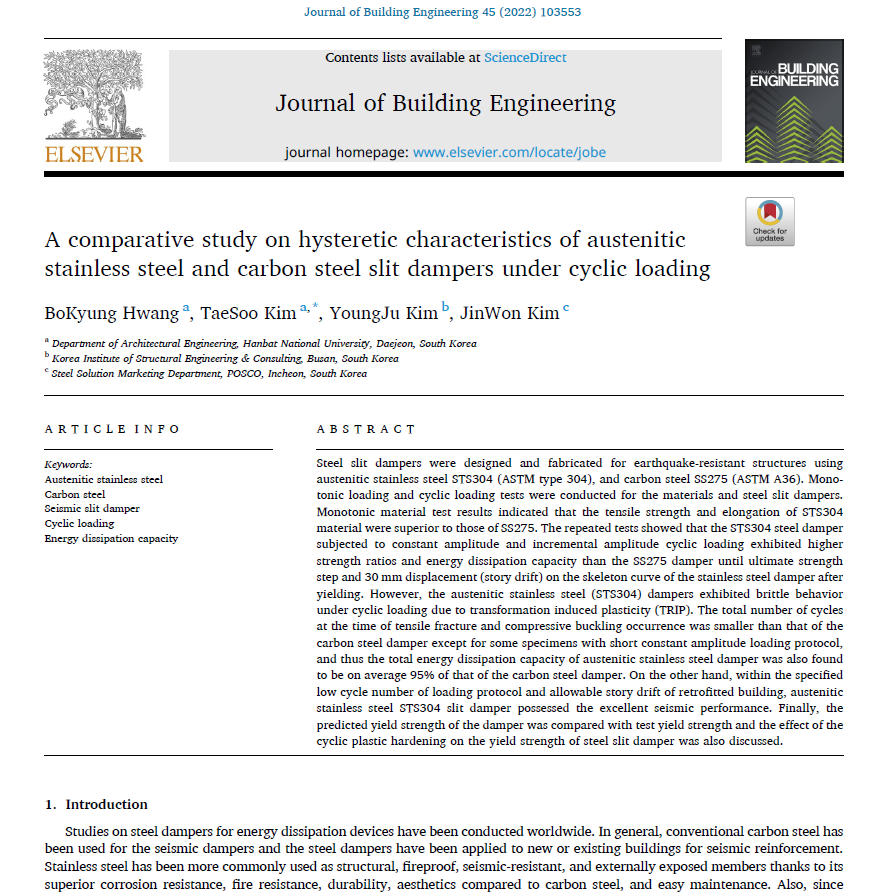

Reference

This project is based on the reference research article. The paper is included with the project files and can be used to review the experimental model and reported results.
