Connection of beam to column with end plate bolted connection under monotonic loading Abaqus

 In this example we intend to simulate the connection of beam to the column with end plate bolted connection under monotonic loading in the Abaqus software

As you observe in the picture, this Model is composed of beam, column, end plate and bolt

In this question, beam has been connected to end plate using weld , and end plate has been connected to the column by 6 bolts

In this question, a monotonic loading is applied to the end of the beam and then the moment-rotation diagram will be drawn

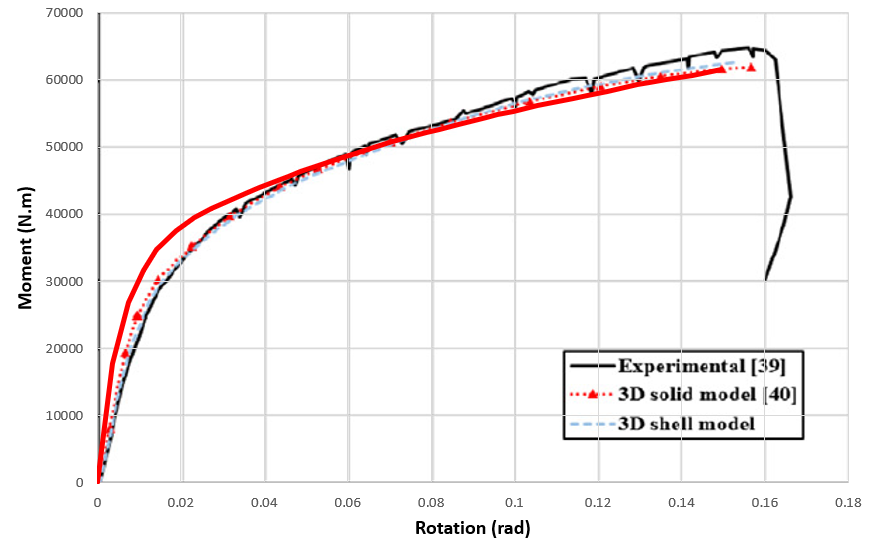

In this picture, the moment-rotation diagram obtained from abaqus software has been compared with experimental results

In this picture, the deformation of the model undergoing a monotonic loading can be observed

In this picture, the results gained from the abaqus software have been compared with the experimental results. As you observe, there is a good conformity between the abaqus results and experimental results

This project has been validated, which means that the results obtained from Abaqus software are similar to the results of the article. In other words, this project is based on the article
