Cyclic analysis of the steel plate shear wall with stiffeners Abaqus

In this example, we intend to simulate the cyclic analysis of the steel plate shear wall with stiffeners in the Abaqus software

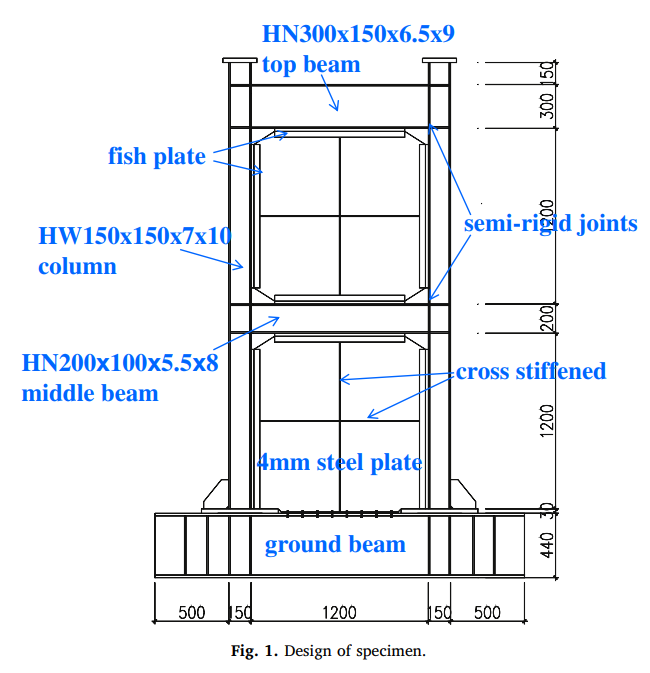

As you observe in this picture, the Model includes Plate, Stiffener, Column, Middle Beam, Top Beam and Continuity Plate

In this question, a cyclic loading is applied to the steel shear wall and following that Its hysteresis diagram will be drawn

This problem consists of two parts: 1- buckling analysis 2- hysteresis analysis

First, buckling analysis is performed and buckling modes are extracted. Then, the initial imperfection is defined using buckling modes

In these pictures, deformation of the steel shear wall under a cyclic loading can be observed

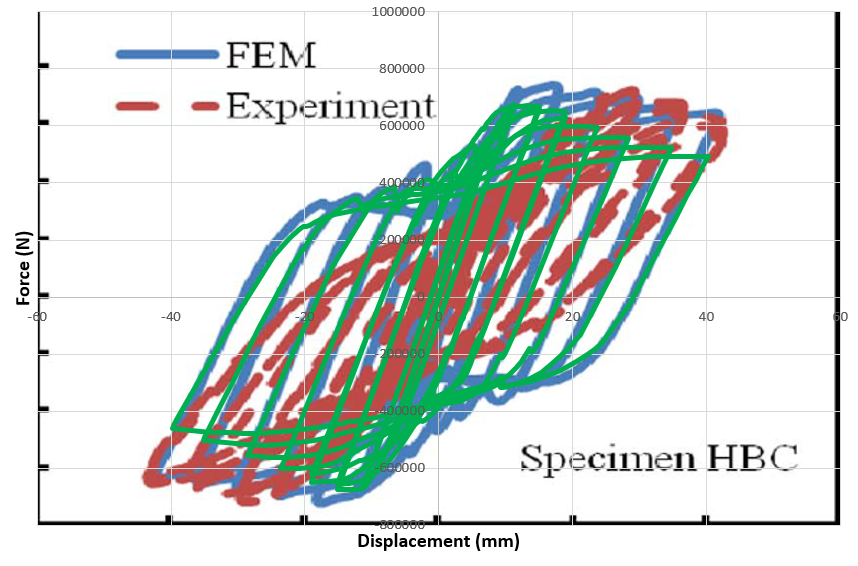

In this picture, the results obtained from the Abaqus software Have been compared with the Experimental results

This project has been validated, which means that the results obtained from Abaqus software are similar to the results of the article. In other words, this project is based on the article
