Product Overview

In this project, the cyclic behavior of a beam-column joint is simulated in Abaqus based on Specimen S1 from the reference experimental study.

The beam-column joint consists of a wide-flange beam, a square tube column, a panel zone, and a through diaphragm. The specimen was designed to develop a panel yielding dominated mode, with the panel zone providing the main contribution to the inelastic response and energy dissipation of the joint.

The numerical model is developed based on an experimental study reported in the reference paper. The Abaqus results are compared with the experimental results to evaluate the accuracy of the numerical model.

Model Description

The model represents a beam-column joint subjected to cyclic loading. The main components of the model include the beam, column, panel, and diaphragm.

The geometry and configuration of the model are defined according to the information provided in the reference experimental study. The required material properties, interactions, boundary conditions, and analysis settings are defined in Abaqus.

The numerical model is developed to reproduce the behavior of the experimental beam-column joint under cyclic loading.

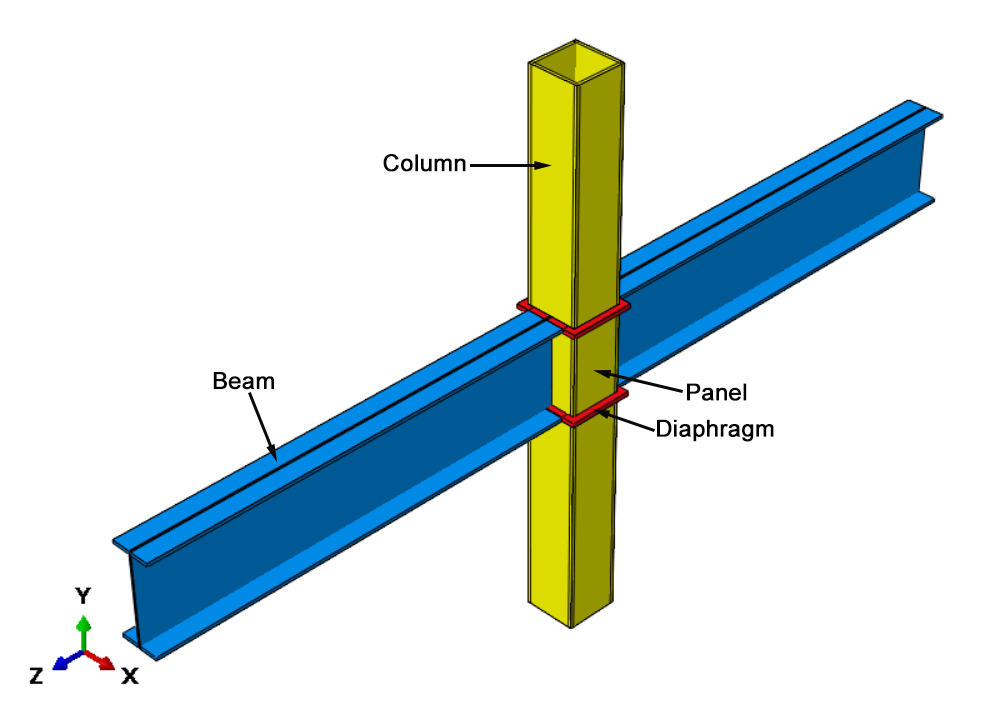

Beam-column joint model in Abaqus
Beam-column joint modeled in Abaqus.

Cyclic Loading

A cyclic loading is applied to the top of the column to investigate the behavior of the beam-column joint under repeated loading and unloading cycles.

The loading history is defined using the Amplitude option in Abaqus based on the loading protocol used in the experimental study.

The structural response is recorded throughout the nonlinear analysis to obtain the hysteretic behavior of the beam-column joint.

Cyclic loading applied to the beam-column joint
Cyclic loading applied to the top of the column.

Hysteresis Response

The numerical results obtained from Abaqus are used to generate the Moment–Drift hysteresis diagram of the beam-column joint.

The numerical hysteresis response is compared with the experimental results reported in the reference paper.

The hysteresis response of Specimen S1 exhibited a very stable hysteretic behavior during cyclic loading, with no significant strength deterioration. The panel zone developed full and stable hysteresis loops with significant plastic deformation, while the beam experienced only slight plastic deformation. In contrast, the columns remained generally elastic throughout the cyclic loading. This behavior indicates that the panel zone provided the dominant contribution to the inelastic response and energy dissipation of the joint, consistent with the panel yielding dominated mode identified for Specimen S1.

The comparison shows good agreement between the Abaqus results and the experimental results.

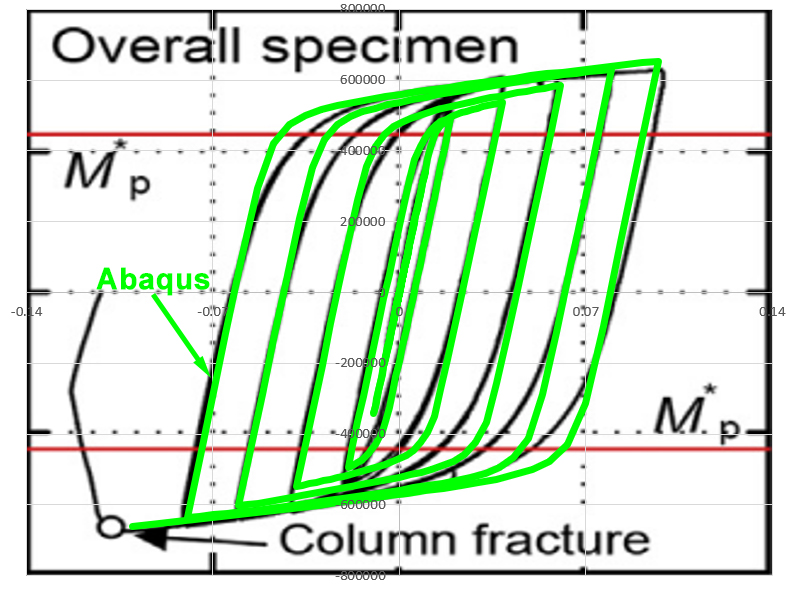

Moment–Drift hysteresis diagram obtained from Abaqus
Comparison between the numerical and experimental Moment–Drift hysteresis responses.

Deformation Under Cyclic Loading

The deformation of the beam-column joint is investigated throughout the cyclic loading analysis. The panel zone develops significant inelastic deformation as the story drift increases, consistent with the panel yielding dominated behavior observed in Specimen S1.

The Abaqus results are used to observe the deformation of the model at different stages of the cyclic loading.

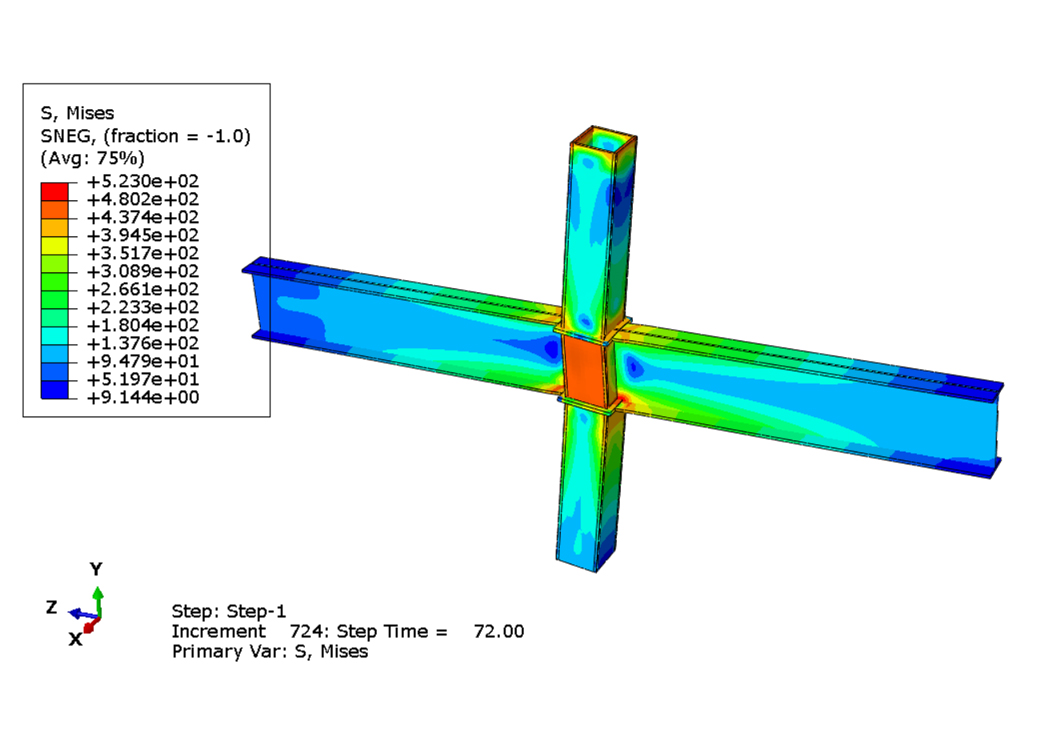

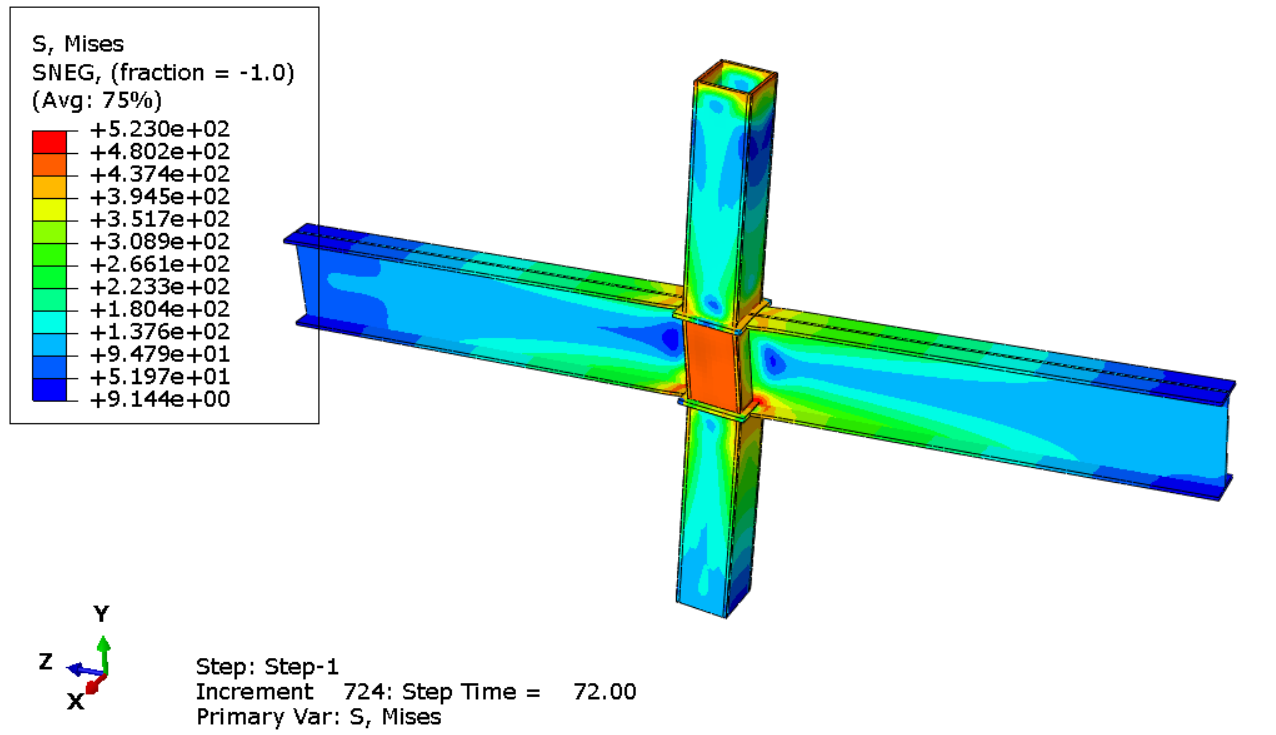

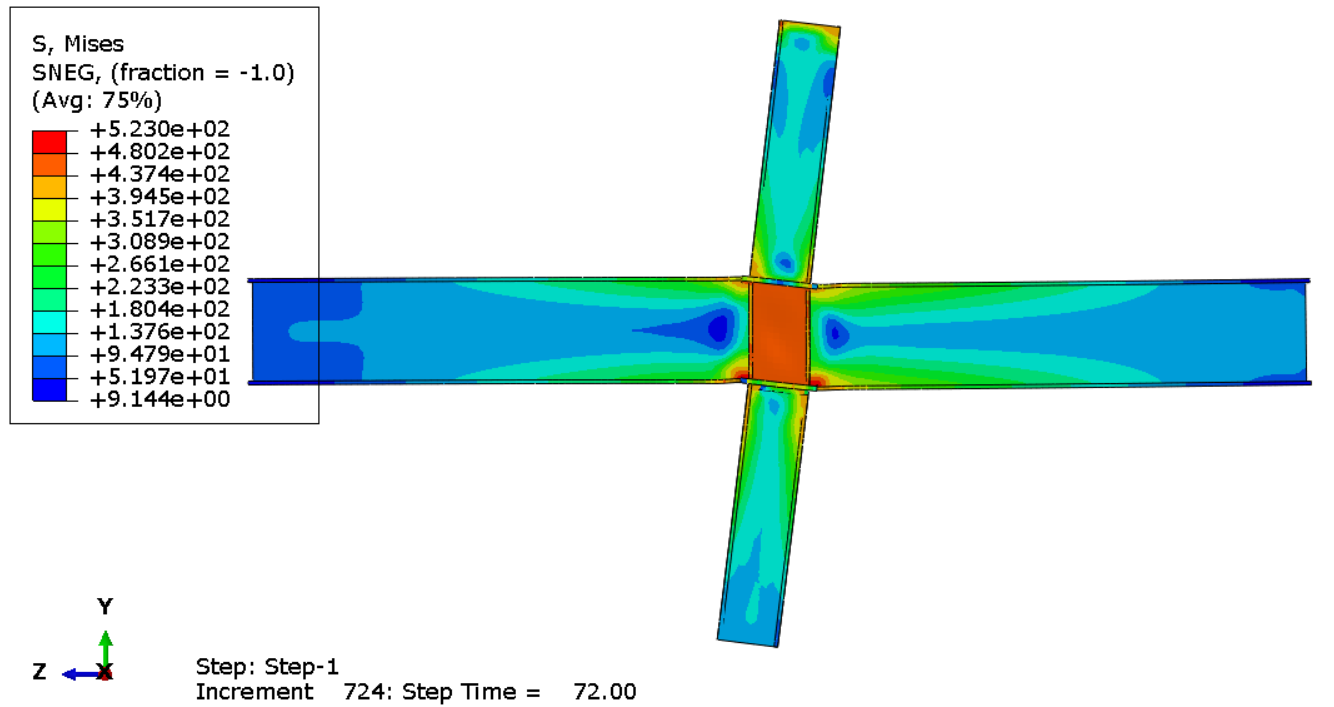

Deformation of beam-column joint under cyclic loading
Deformation of the beam-column joint under cyclic loading.

Experimental Validation

The numerical results obtained from Abaqus are compared with the experimental results reported in the reference research paper.

The comparison focuses on the Moment–Drift hysteresis response and the overall structural behavior of the beam-column joint under cyclic loading.

The numerical results show good conformity with the experimental results, demonstrating that the Abaqus model can reproduce the main behavior observed in the experimental study.

Comparison between Abaqus and experimental results
Comparison between the Abaqus and experimental results.

Key Features

  • Cyclic analysis of a beam-column joint.
  • Beam, column, panel, and diaphragm modeling.
  • Nonlinear analysis under cyclic loading.
  • Cyclic loading applied to the top of the column.
  • Moment–Drift hysteresis response.
  • Deformation analysis under cyclic loading.
  • Comparison with experimental results.
  • Validated Abaqus numerical model.
  • Complete Abaqus model files.
  • Excel file for amplitude loading.
  • Excel file containing numerical results.
  • Reference research paper.
  • Step-by-step video tutorial.

What You Will Learn

  • How to model a beam-column joint in Abaqus.
  • How to define the beam, column, panel, and diaphragm.
  • How to define the required material properties.
  • How to define the interactions between the structural components.
  • How to define the boundary conditions of the model.
  • How to apply cyclic loading to the top of the column.
  • How to define cyclic loading using the Amplitude option in Abaqus.
  • How to perform nonlinear analysis under cyclic loading.
  • How to obtain a Moment–Drift hysteresis diagram.
  • How to extract and process Abaqus results using Excel.
  • How to compare numerical and experimental results.
  • How to evaluate the deformation of the joint during cyclic loading.

Reference

This project is based on the experimental study provided in the reference research paper.

The paper is included with the project files and can be used to review the experimental configuration, loading protocol, and reported results.

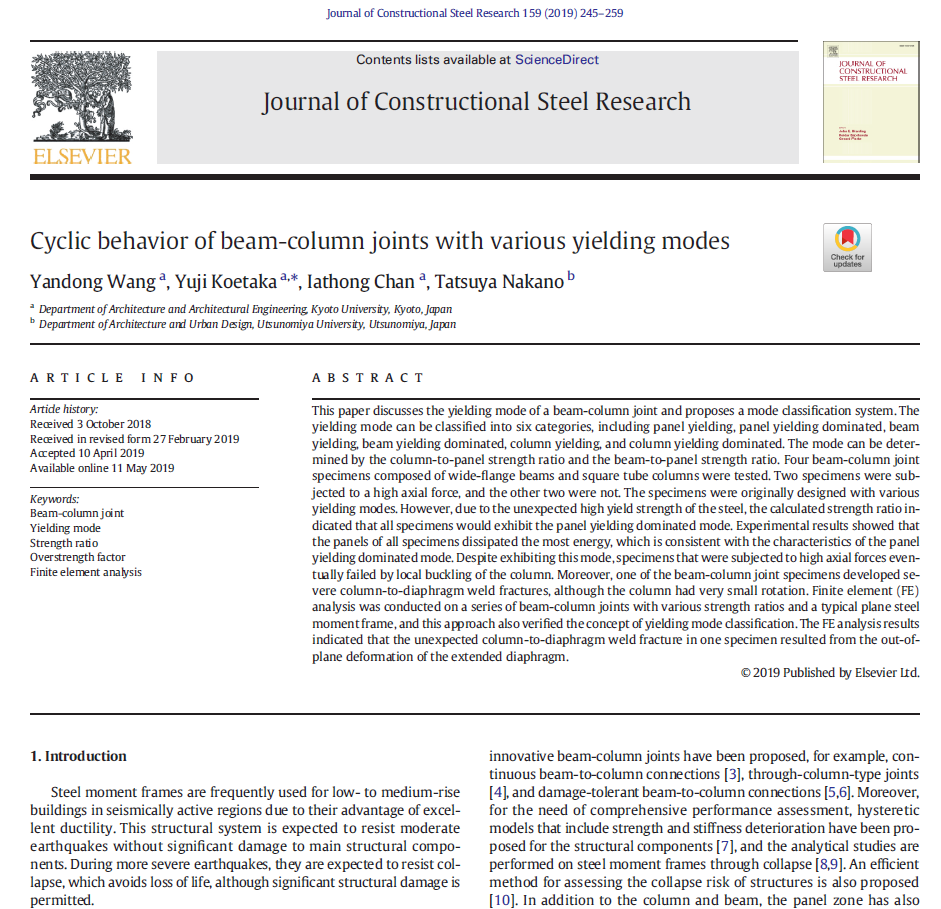

Reference research paper
Reference research paper.
Files Included
What you will receive after purchase
File Type
Content
Description
🧩 Abaqus
CAE File
Complete Abaqus model
📄 Abaqus
INP File
Abaqus input file
📊 Excel
Amplitude Loading Data
Data used to define the cyclic loading
📊 Excel
Numerical Results
Results extracted from the Abaqus analysis
📑 Document
Research Paper
Reference paper used for the project
🎥 Video
Video Tutorial
Step-by-step explanation of the project

Project Information

Important information about this project

🎥
Video Duration 33 Minutes
📦
Total File Size 280 MB
🔧
Abaqus Version Abaqus 2017
🌐
Language English
📥
File Delivery Instant Download
