Cyclic loading of Shear-bending yielding damper in Abaqus
This project includes full video (step by step) – Cae file – inp file – Excel files and paper
Description
Cyclic loading of Shear-bending yielding damper in Abaqus
In this example we intend to simulate the shear-bending yielding damper under cyclic loading in Abaqus software
As you observe in the picture, the yielding damper is composed of shear plate, flexural plate, end plate

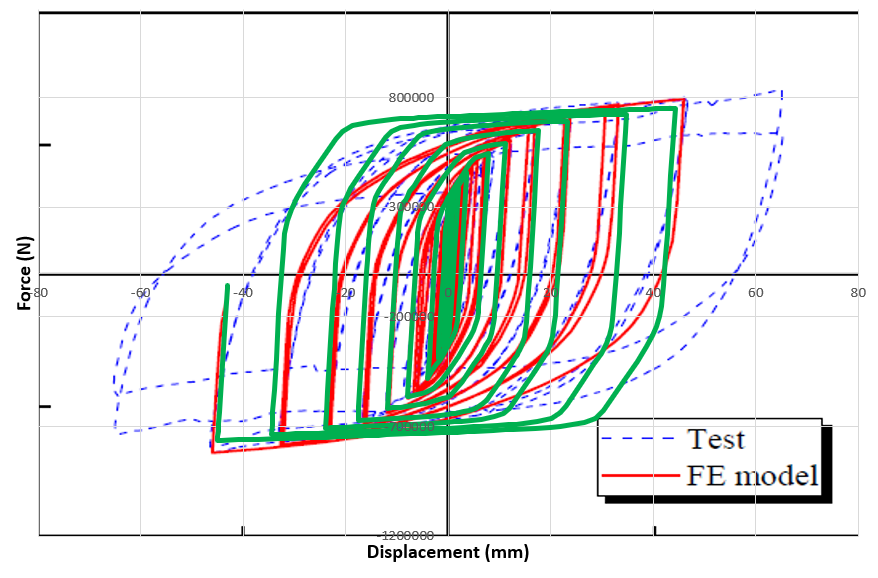

In this picture, the results gained from the abaqus software have been compared with the experimental results
In this picture , the buckling of shear plate in the abaqus and the experimental sample have been compared
You can see the damage in shear plate in abaqus and experimental sample
In this question, a cyclic loading is applied to the end of the beam and following that it’s hysteresis diagram will be drawn
This project has been validated, which means that the results obtained from Abaqus software are similar to the results of the article. In other words, this project is based on the article
Information about this tutorial |
|
|---|---|
Full video (Step by step) Cae file inp file Excel file (Amplitude loading) Excel file (Results) Paper (Article) | You will receive these files after purchase |
English | The language of the video |
Is 43 minutes | Duration of the video |
Is 380 MB | Size of all files |
Full HD, 1080p | Video quality |
After payment, the download link will be sent to your email immediately | Method of receiving |
PayPal , Credit card , Tether | Payment Method |
$ 12 | Price |
Email : saeedofmoeini@gmail.com | Contact us |
