Cyclic test of concrete-filled steel box column Abaqus

In this example we intend to simulate the steel column filled with concrete under the cyclic loading in the Abaqus software

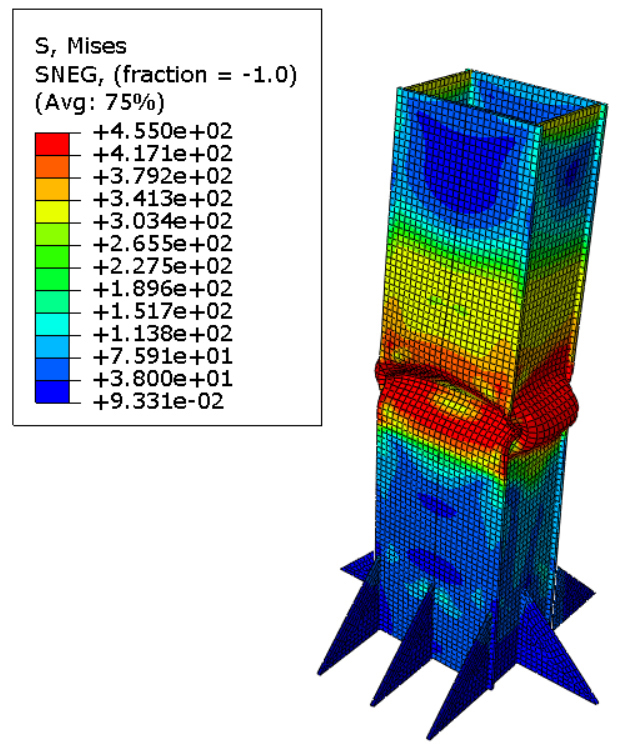

This Model includes steel column, top concrete, Diaphragm, bottom column and Rib

As you observe in this picture, the top concrete and the bottom concrete have become separated from each other using a diaphragm

In this picture, the results gained from the Abaqus software have been compared with those obtained from experimental sample. As you observe, there’s a good conformity between the results from the Abaqus software with those obtained from experimental sample

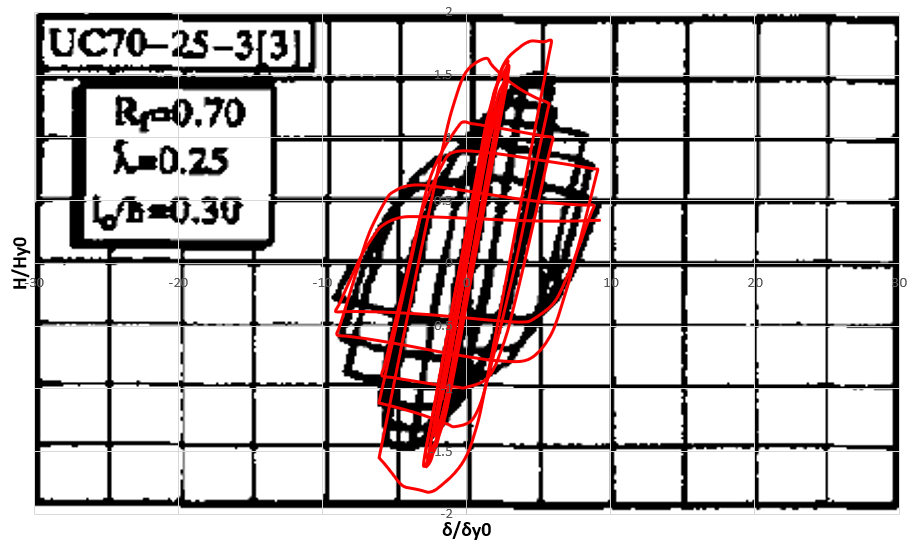

In this picture, hysteresis diagram obtained from the Abaqus software has been compared with the results gained from the article

This project has been validated, which means that the results obtained from Abaqus software are similar to the results of the article. In other words, this project is based on the article

Information about this tutorial

You will receive these files after purchase

Full video (Step by step)

Cae file

inp file

Excel file (Amplitude loading)

Excel file (Results)

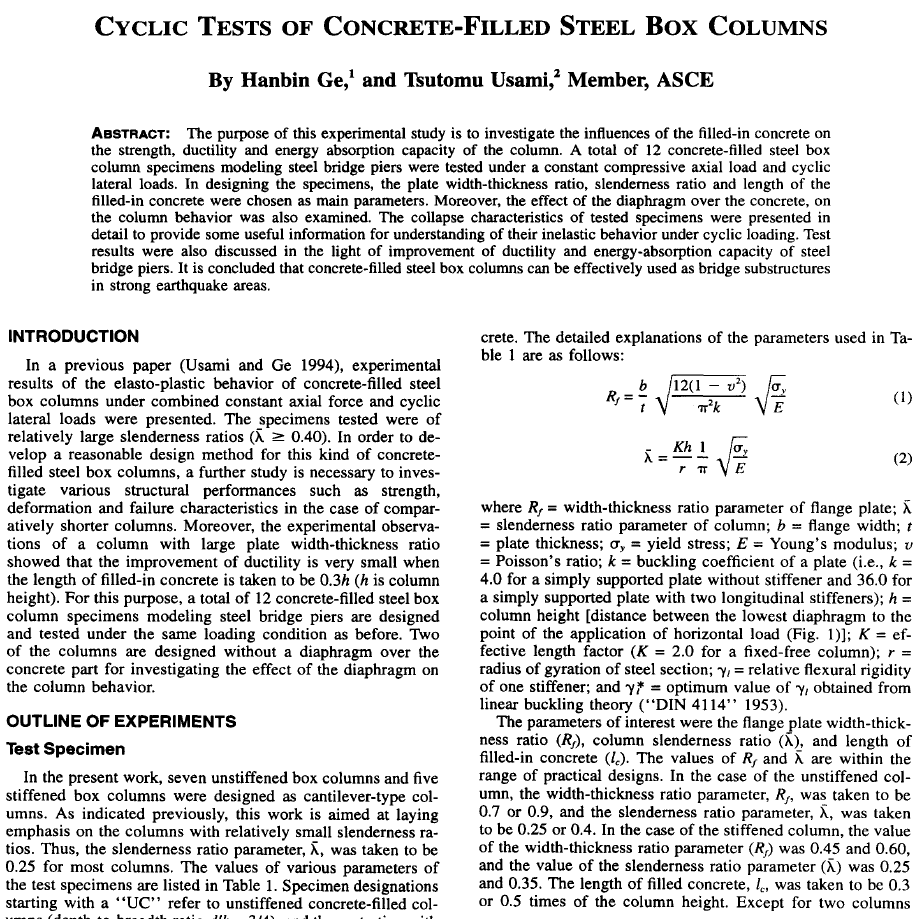

Paper (Article)
