Product Overview
In this example, we intend to simulate the Double-HSS link for an eccentrically braced frame under cyclic loading in the Abaqus software.

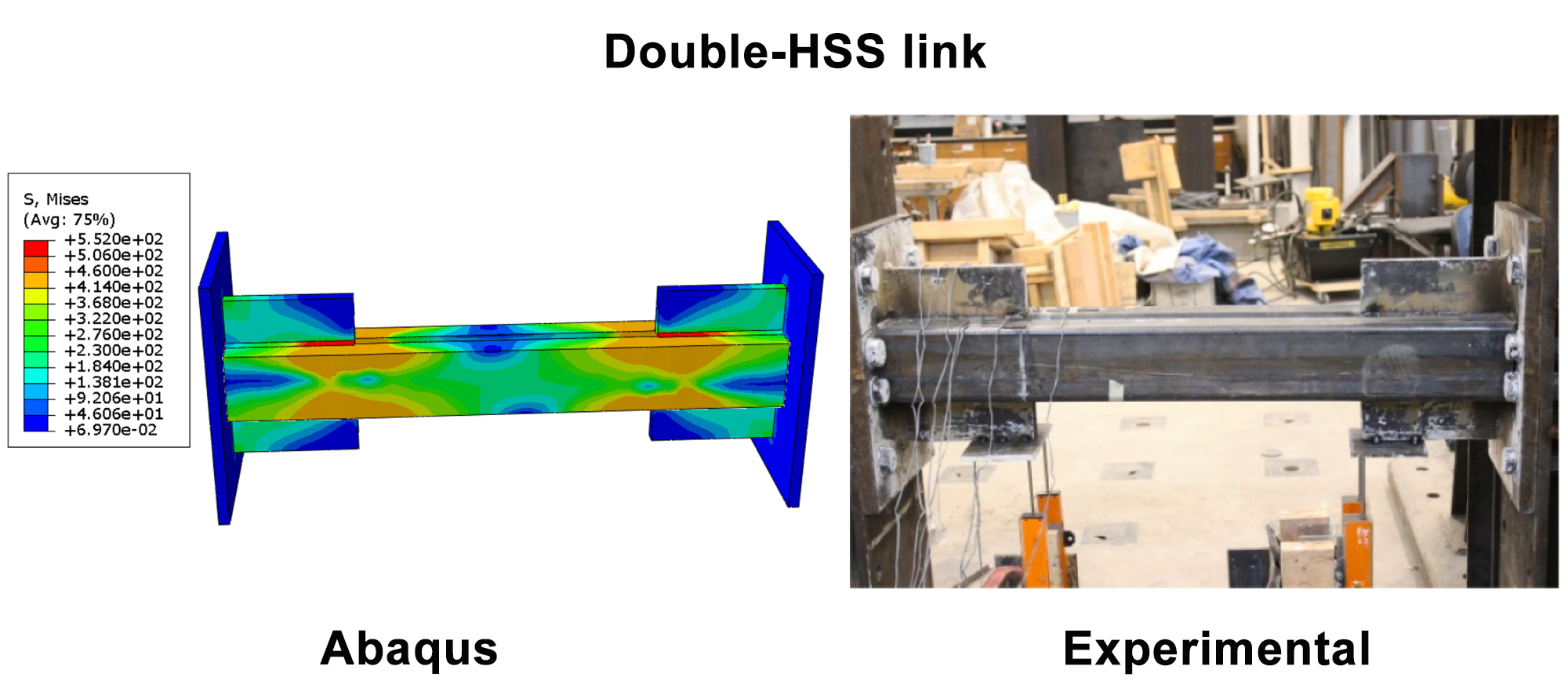

In the right picture, the laboratory model and in the left picture, the sample having been simulated in the Abaqus software can be observed.
Model Description

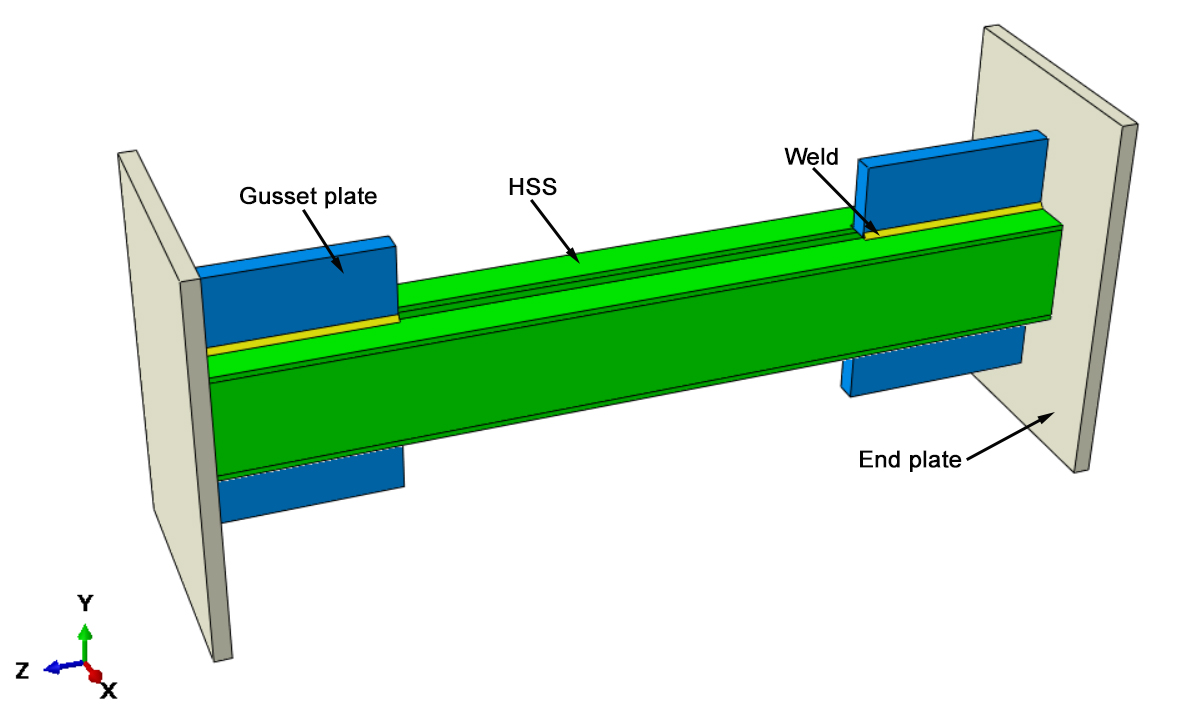

As you observe in this picture, this model is composed of two HSS members, Gusset Plate, End Plate, and Weld.The HSS members are connected to the gusset plate through welded connections
The Double-HSS members form the main active link of the eccentrically braced frame. They are designed to develop plastic deformation and rotation within the link while reducing the forces and demands on the surrounding structural members.
Test Setup

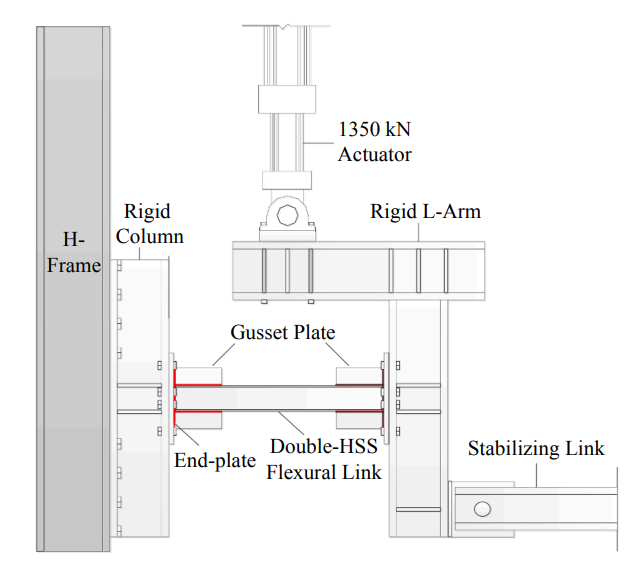

One end of the Double-HSS link was rigidly connected to a column, providing high rotational restraint, while the other end was connected to a rigid L-arm with greater rotational flexibility. The experimental loading condition is reproduced in the Abaqus software to investigate the cyclic behavior of the Double-HSS link.
Cyclic Loading
In this analysis, a cyclic loading is applied to the model according to the loading protocol used in the experimental study.
The cyclic loading amplitude is defined in Abaqus to reproduce the loading history applied to the laboratory specimen.
Comparison of Abaqus and Experimental Results

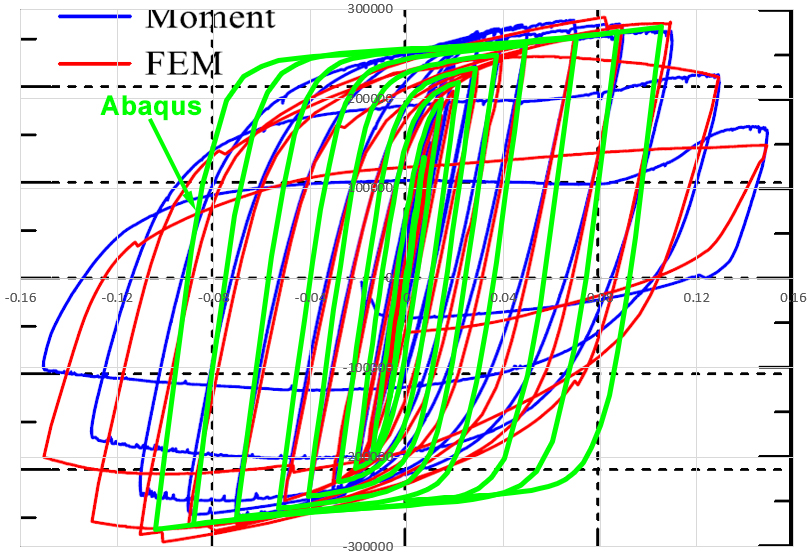

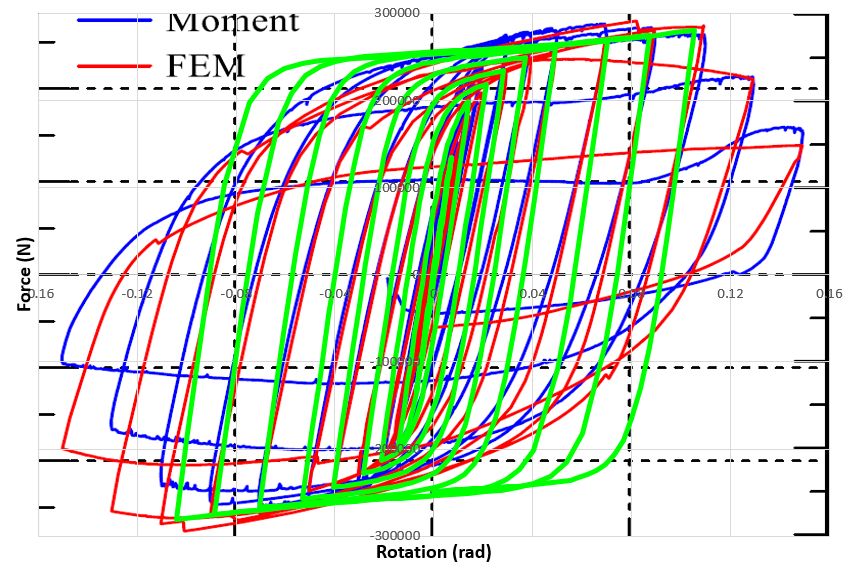

In this picture, the Force-Rotation hysteresis diagram obtained from the Abaqus software has been compared with the experimental results.
This comparison is used to evaluate the accuracy of the numerical model in reproducing the cyclic response of the experimental Double-HSS link.
Validation
This project has been validated, which means that the results obtained from the Abaqus software are similar to the results reported in the article.
In other words, this project is based on the reference article and the numerical model has been developed to reproduce the cyclic behavior reported in the experimental study.
Key Features
- Double-HSS link modeling in Abaqus.
- Eccentrically braced frame modeling.
- HSS, gusset plate, end plate, and weld modeling.
- Cyclic loading analysis.
- Cyclic loading amplitude definition.
- Force-Rotation hysteresis diagram.
- Comparison between Abaqus and experimental results.
- Investigation of the numerical response under cyclic loading.
- Validation against the reference article.
- Complete Abaqus CAE file.
- Abaqus INP file.
- Excel amplitude loading file.
- Excel results file.
- Reference research paper.
- Step-by-step video tutorial.
What You Will Learn
- How to model a Double-HSS link in Abaqus.
- How to model the HSS members.
- How to model the gusset plate.
- How to model the end plate.
- How to define the weld between the components.
- How to define the material properties of the steel components.
- How to assemble the complete model.
- How to define the boundary conditions.
- How to apply cyclic loading to the model.
- How to define the cyclic loading amplitude.
- How to obtain the Force-Rotation hysteresis diagram.
- How to compare the Abaqus hysteresis response with experimental results.
- How to investigate the response of the Double-HSS link under cyclic loading.
- How to validate the numerical model using the reference article.

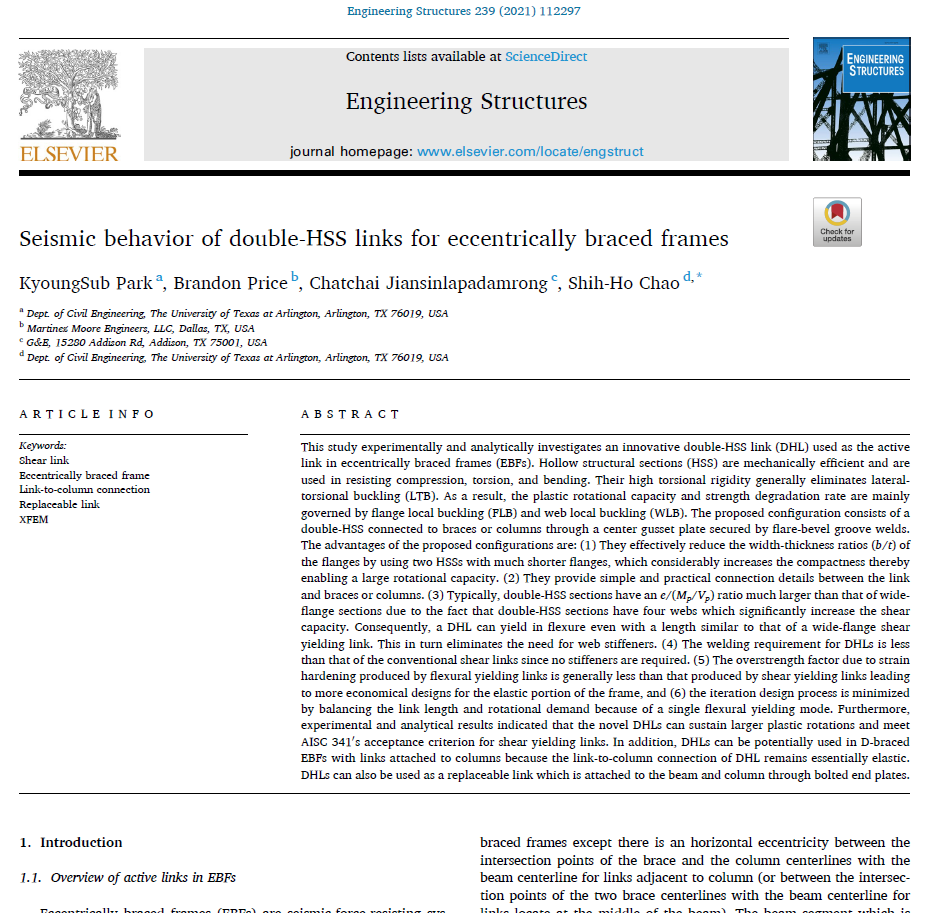

Reference
This project is based on the reference research article. The paper is included with the project files and can be used to review the experimental model, loading protocol, and reported results.
