In this example, we intend to simulate the Honeycomb Structural Fuse (HSF) under cyclic loading in the Abaqus software.

The Honeycomb Structural Fuse (HSF) is a metallic damper designed to dissipate energy through its inelastic deformation under cyclic loading.

Laboratory Sample

The laboratory sample used in the experimental study can be observed in the following picture.

Cyclic Loading

In this problem, cyclic loading is applied to the Honeycomb Structural Fuse, and its hysteretic behavior is investigated.

The cyclic loading history is defined using the corresponding amplitude data in Abaqus.

Hysteresis Diagram

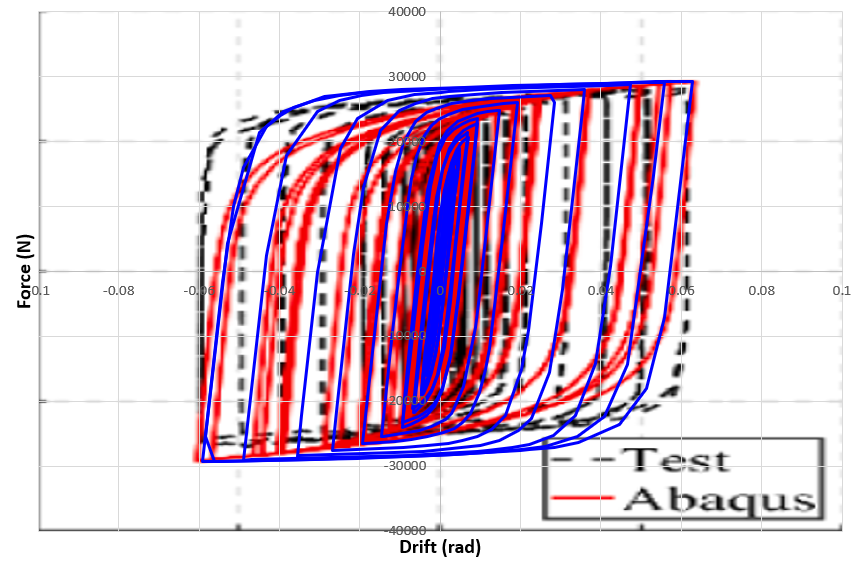

After applying the cyclic loading, the Force-Drift hysteresis diagram is obtained from the Abaqus results.

In this picture, the Force-Drift hysteresis diagram obtained from Abaqus is compared with the results obtained from the experimental sample.

Deformation of the Model

The deformation of the Honeycomb Structural Fuse under cyclic loading can be observed in the following picture.

Validation

This project has been validated, which means that the results obtained from the Abaqus software are similar to the results reported in the article.

In other words, this project is based on the reference article, and the numerical model has been developed to reproduce the experimental behavior of the Honeycomb Structural Fuse under cyclic loading.

What You Will Learn

• How to model a Honeycomb Structural Fuse (HSF) in Abaqus.
• How to model a metallic damper.
• How to define the geometry and assembly of the model.
• How to define the material properties.
• How to define the boundary conditions.
• How to apply cyclic loading.
• How to define the cyclic loading amplitude.
• How to obtain the Drift-Force hysteresis diagram.
• How to investigate the behavior of the damper under cyclic loading.
• How to compare Abaqus results with experimental results.
• How to validate the numerical model using the reference article.

Key Features

• Honeycomb Structural Fuse (HSF) modeling in Abaqus.
• Metallic damper analysis.
• Cyclic loading analysis.
• Drift-Force hysteresis diagram.
• Comparison between Abaqus and experimental results.
• Validation against the reference article.
• Complete Abaqus CAE file.
• Abaqus INP file.
• Excel amplitude loading file.
• Excel material file.
• Excel results file.
• Reference research paper.
• Step-by-step video tutorial.

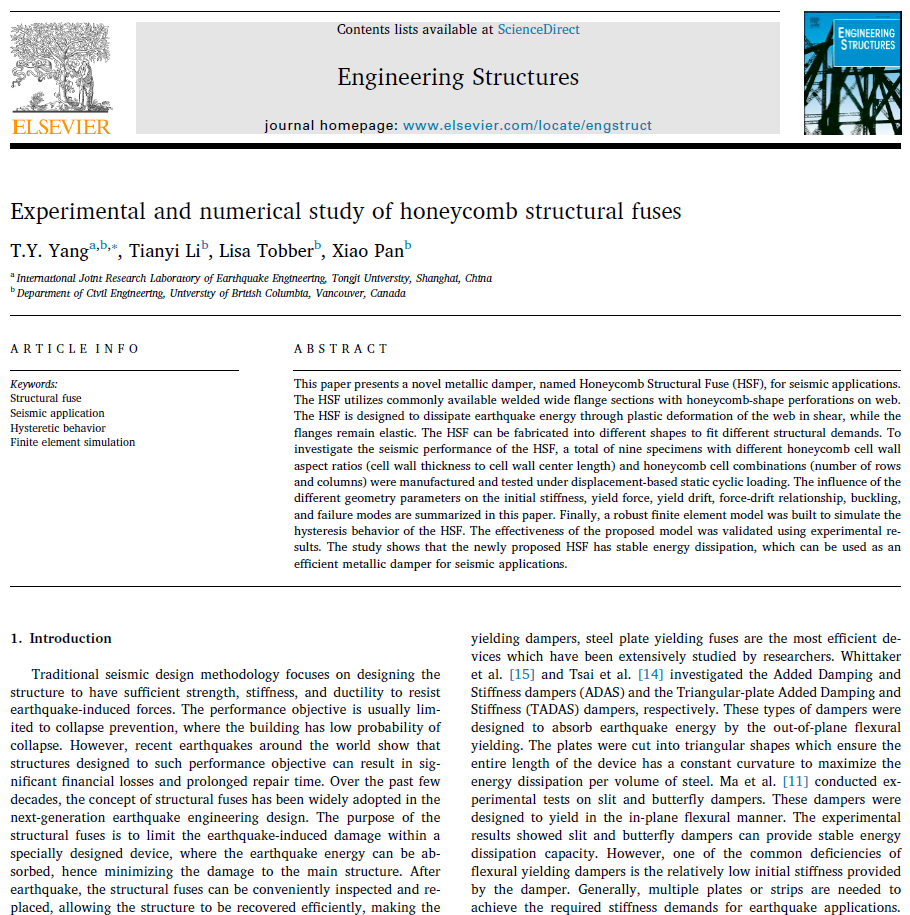

Reference

This project is based on the reference research article. The paper is included with the project files and can be used to review the experimental model, cyclic loading protocol, and reported results.
