Hysteresis analysis of beam-column connection with vertical stiffener Abaqus

Product Overview

In this project, the hysteretic behavior of a beam-column connection with a vertical stiffener is investigated using Abaqus.

The numerical model is developed based on an experimental study, and the Abaqus results are compared with the experimental results to evaluate the accuracy of the numerical model.

Model Description

The model represents a beam-column connection with a vertical stiffener subjected to cyclic loading.

As you observe in this picture, the model is composed of a beam, column, shear plate, and vertical stiffener.

In this model, a continuity plate is not utilized. Instead, a vertical stiffener is used in the connection.

The required material properties, interactions, boundary conditions, and analysis settings are defined in Abaqus to reproduce the behavior of the experimental connection.

Cyclic Loading

A cyclic loading is applied to the end of the beam according to the loading protocol used in the experimental study.

The loading history is defined using the Amplitude option in Abaqus. The connection is then analyzed under repeated loading and unloading cycles.

Results and Hysteresis Response

The Abaqus results are extracted and processed to evaluate the structural response of the connection under cyclic loading.

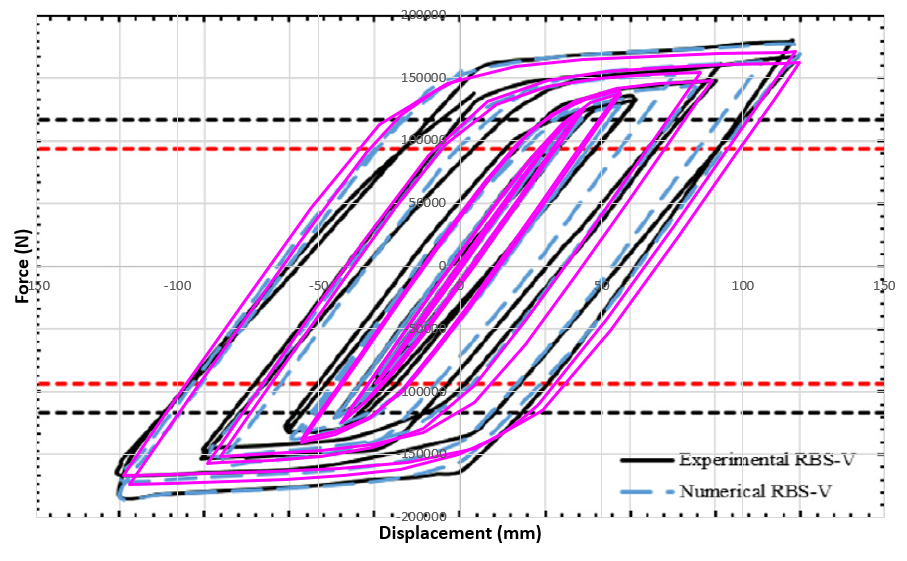

The resulting response is used to obtain the Displacement–Force hysteresis diagram.

The hysteresis diagram obtained from Abaqus is compared with the experimental results reported in the reference study.

Deformation Under Cyclic Loading

The deformation of the model undergoing cyclic loading can be observed from the Abaqus results.

The numerical results allow the deformation and nonlinear behavior of the beam-column connection to be evaluated at different stages of the cyclic loading history.

Experimental Validation

The numerical results obtained from Abaqus are compared with the experimental results reported in the reference article.

The comparison focuses on the Displacement–Force hysteresis response and the overall structural behavior of the beam-column connection under cyclic loading.

This project has been validated, which means that the results obtained from Abaqus are similar to the results reported in the reference article. In other words, this project is based on the experimental study.

Key Features

• Numerical modeling of a beam-column connection with a vertical stiffener.
• Modeling of the beam, column, shear plate, and vertical stiffener.
• No continuity plate is used in the model.
• Cyclic analysis of the beam-column connection.
• Nonlinear analysis under cyclic loading.
• Displacement–Force hysteresis analysis.
• Evaluation of deformation under cyclic loading.
• Comparison with experimental results.
• Validated Abaqus numerical model.
• Complete Abaqus model files.
• Excel file for amplitude loading.
• Excel file containing numerical results.
• Reference research paper.
• Step-by-step video tutorial.

What You Will Learn

• How to model a beam-column connection with a vertical stiffener in Abaqus.
• How to define the geometry of the beam and column.
• How to model the shear plate and vertical stiffener.
• How to define the material properties of the model.
• How to define the required interactions and constraints.
• How to define the boundary conditions of the model.
• How to apply cyclic loading to the end of the beam.
• How to define cyclic loading using the Amplitude option in Abaqus.
• How to perform nonlinear analysis under cyclic loading.
• How to obtain a Displacement–Force hysteresis diagram.
• How to evaluate the deformation of the model during cyclic loading.
• How to extract and process Abaqus results using Excel.
• How to compare numerical and experimental results.

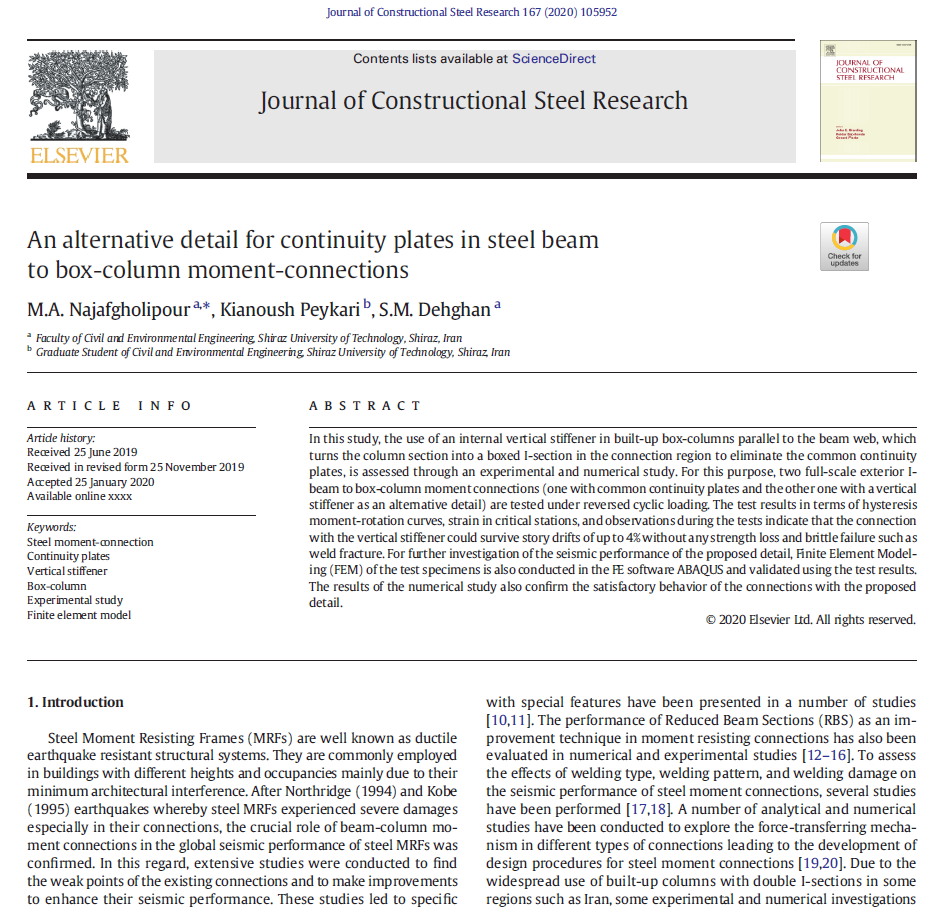

Reference

This project is based on the experimental study provided in the reference research paper. The paper is included with the project files and can be used to review the experimental configuration, loading protocol, and reported results.
