Hysteresis analysis of the steel shear wall with RBS beam Abaqus

Product Overview

In this project, the hysteresis behavior of a steel plate shear wall with RBS beams is investigated using Abaqus.

The numerical model is developed based on the experimental study reported in the reference paper. The model consists of two RBS beams, two columns, one steel plate, and several stiffeners.

Cyclic loading is applied to the upper beam, and the nonlinear hysteretic response of the shear wall is obtained from the Abaqus analysis.

Model Description

The numerical model represents the S2 specimen from the reference experimental study. The model consists of two RBS beams, two columns, a steel plate, and stiffeners. The geometry, material properties, and structural details are defined in Abaqus according to the information provided in the experimental study.

The numerical model is developed to investigate the nonlinear structural response of the shear wall under cyclic loading.

Buckling Analysis and Initial Imperfection

The project consists of two main analysis stages: buckling analysis and hysteresis analysis.

First, a buckling analysis is performed to obtain the buckling modes of the shear wall.

The obtained buckling modes are then used to introduce an initial geometric imperfection into the numerical model.

This procedure helps the numerical model better represent the initial imperfections of the experimental specimen.

Cyclic Loading

Cyclic loading is applied to the upper beam of the shear wall according to the loading protocol used in the reference experimental study.

The loading history is defined using the Amplitude option in Abaqus.

The structure is then analyzed under repeated loading and unloading cycles to investigate its nonlinear hysteretic behavior.

Hysteresis Analysis

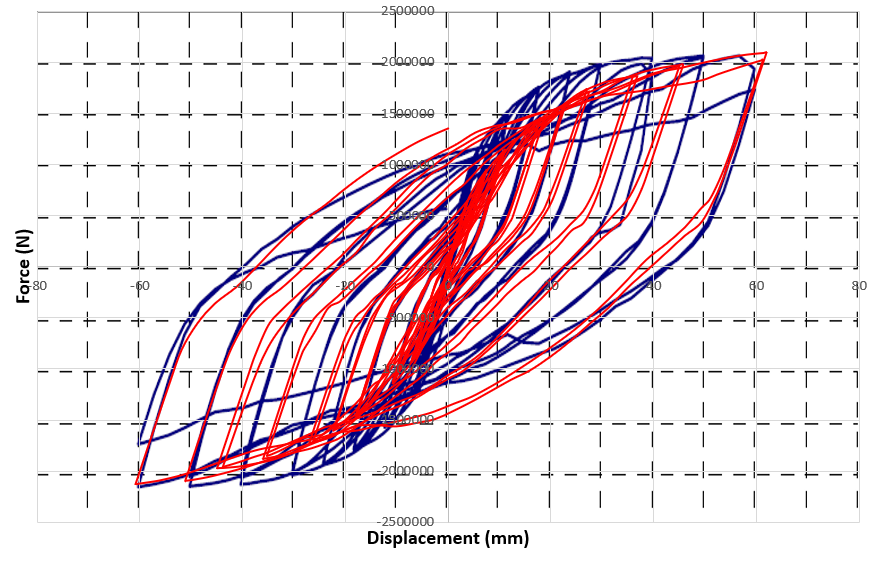

The force and displacement results are extracted from Abaqus after the cyclic loading analysis.

These results are used to obtain the force-displacement hysteresis diagram of the steel plate shear wall.

The obtained hysteresis response is used to evaluate the nonlinear behavior of the shear wall under cyclic loading.

Experimental Validation

The numerical results obtained from Abaqus are compared with the experimental results reported in the reference paper.

The comparison focuses on the hysteresis response and the overall structural behavior under cyclic loading.

The results obtained from the Abaqus model are in good agreement with the results reported in the experimental study.

Key Features

• Hysteresis analysis of a steel plate shear wall with RBS beams.
• Modeling of two RBS beams and two columns.
• Modeling of the steel plate and stiffeners.
• Buckling analysis and extraction of buckling modes.
• Initial geometric imperfection based on buckling modes.
• Cyclic loading using the Amplitude option.
• Nonlinear hysteresis analysis.
• Comparison with experimental results.
• Complete Abaqus model files.
• Excel file for amplitude loading.
• Excel file containing numerical results.
• Step-by-step video tutorial.

What You Will Learn

• How to model a steel plate shear wall with RBS beams in Abaqus.
• How to model RBS beams, columns, the steel plate, and stiffeners.
• How to define the geometry and material properties of the model.
• How to define the required interactions and constraints.
• How to define the boundary conditions.
• How to perform a buckling analysis.
• How to extract buckling modes from Abaqus.
• How to define an initial geometric imperfection using buckling modes.
• How to define cyclic loading using the Amplitude option in Abaqus.
• How to perform nonlinear analysis under cyclic loading.
• How to obtain a hysteresis diagram.
• How to extract and process Abaqus results using Excel.
• How to compare numerical and experimental results.

Reference

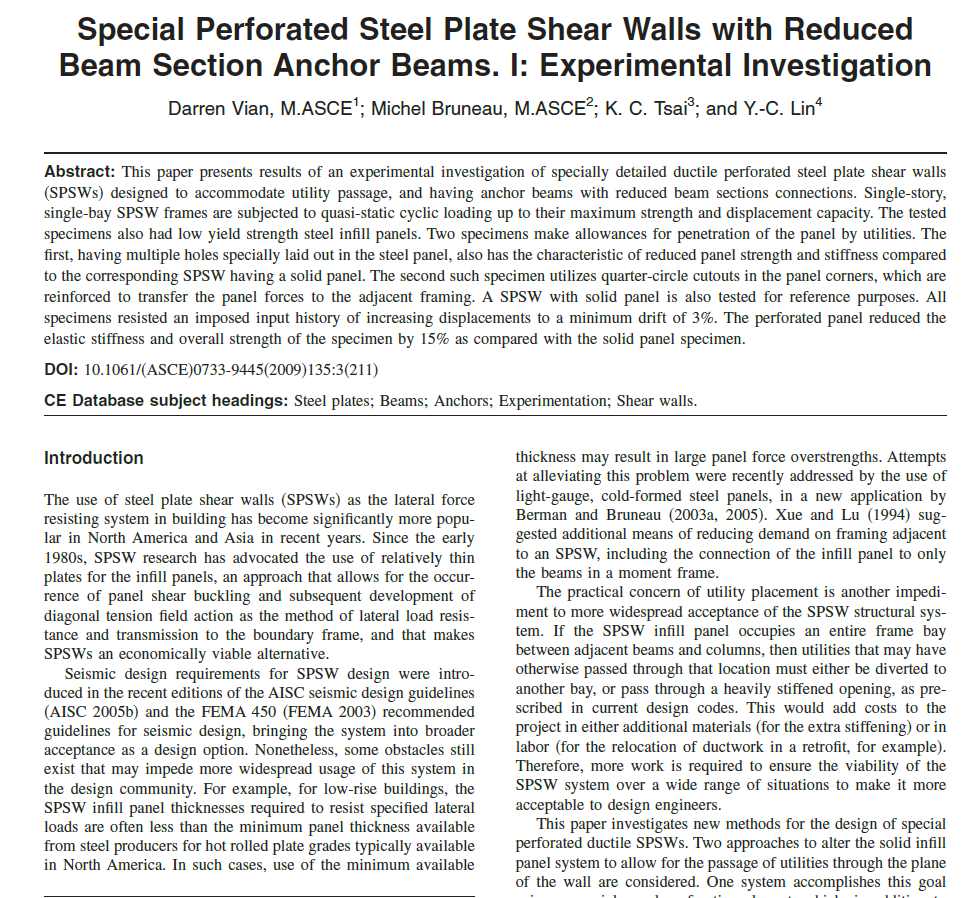

This project is based on the experimental study titled “Special Perforated Steel Plate Shear Walls With Reduced Beam Section Anchor Beams”.

The reference paper is included with the project files and can be used to review the experimental configuration, loading protocol, and reported results.
