Product Overview
In this project, the Slotted-Web–Reduced-Flange (SWRF) moment connection is modeled in Abaqus and its hysteretic behavior under cyclic loading is investigated.
The numerical model is developed based on the experimental study reported in the reference article. The Abaqus results are compared with the experimental results to evaluate the accuracy of the numerical model.
Model Description
The model represents a Slotted-Web–Reduced-Flange (SWRF) moment connection subjected to cyclic loading.
As you observe in this picture, this model is composed of an RBS beam, column, continuity plate, and shear plate.
Two slots are created on the web of the beam. The slot geometry is defined according to the configuration of the experimental specimen.
The required material properties, interactions, boundary conditions, and analysis settings are defined in Abaqus to reproduce the behavior of the experimental connection.
Slotted Web Configuration
Two slots are created on the beam web as part of the SWRF connection configuration.
As you observe, the two slots and their shape can be clearly distinguished in the model.
Cyclic Loading
In this problem, cyclic loading is applied to the end of the beam.
The loading history is defined using the Amplitude option in Abaqus. The connection is then subjected to repeated loading and unloading cycles.
The response of the connection under cyclic loading is investigated throughout the nonlinear analysis.

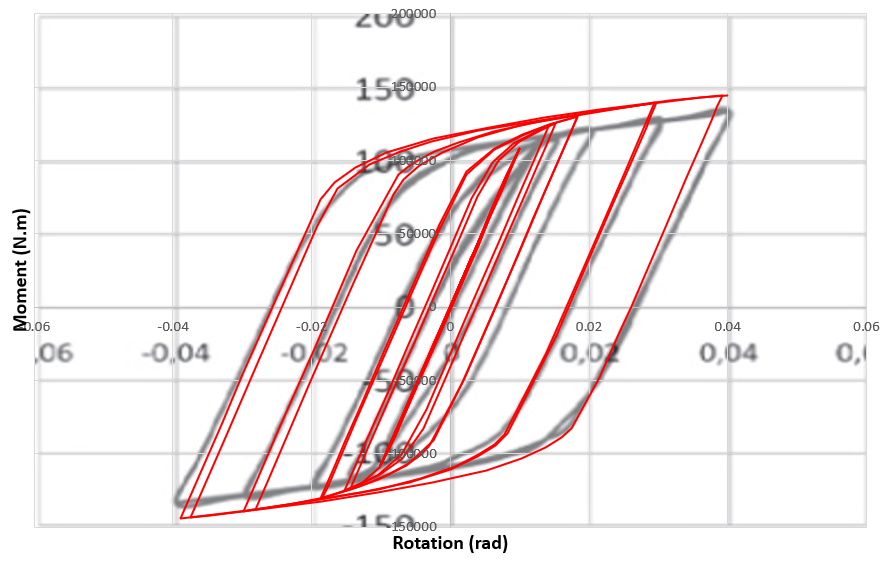

Hysteresis Response
After completing the cyclic analysis, the Abaqus results are extracted to obtain the hysteresis diagram of the connection.
The numerical hysteresis response is then compared with the experimental results reported in the reference article.
Deformation Under Cyclic Loading
The deformation of the model during the cyclic analysis can be observed from the Abaqus results.
The deformation pattern provides additional information about the structural response of the SWRF moment connection under cyclic loading.
Experimental Validation
The numerical results obtained from Abaqus are compared with the experimental results reported in the reference article.
The comparison focuses on the hysteresis response of the connection under cyclic loading.
This project has been validated, which means that the results obtained from Abaqus are similar to the results reported in the article. In other words, this project is based on the experimental study.
Key Features
- Numerical modeling of an SWRF moment connection.
- RBS beam and column modeling.
- Continuity plate and shear plate modeling.
- Two slots created on the beam web.
- Cyclic loading applied to the end of the beam.
- Nonlinear analysis under cyclic loading.
- Hysteresis response of the connection.
- Comparison with experimental results.
- Validated Abaqus numerical model.
- Complete Abaqus model files.
- Excel file for amplitude loading.
- Excel file containing numerical results.
- Reference research paper.
- Step-by-step video tutorial.
What You Will Learn
- How to model a Slotted-Web–Reduced-Flange (SWRF) moment connection in Abaqus.
- How to model the RBS beam and column.
- How to model the continuity plate and shear plate.
- How to create slots on the web of the beam.
- How to define the material properties of the model.
- How to define the interactions between the model components.
- How to define the boundary conditions of the connection.
- How to apply cyclic loading to the end of the beam.
- How to define cyclic loading using the Amplitude option in Abaqus.
- How to perform nonlinear analysis under cyclic loading.
- How to obtain a hysteresis diagram.
- How to extract and process Abaqus results using Excel.
- How to compare numerical and experimental results.
- How to validate an Abaqus model using experimental results.

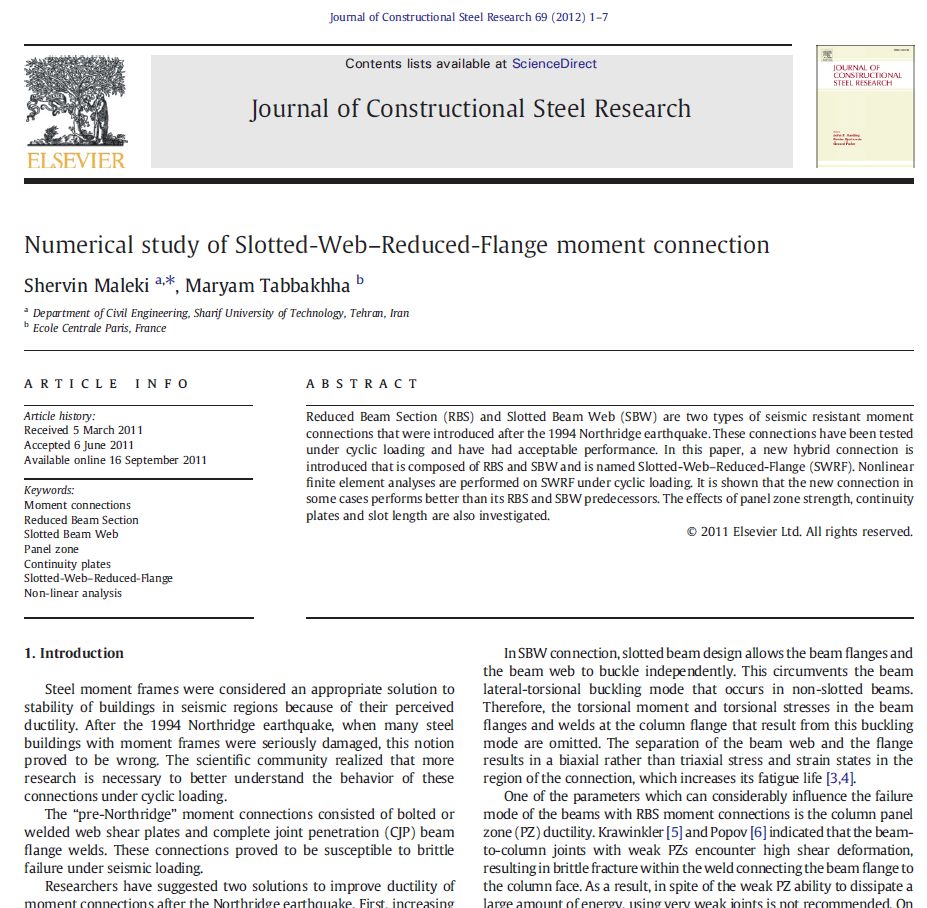

Reference
This project is based on the experimental study provided in the reference research paper. The paper is included with the project files and can be used to review the experimental configuration, loading procedure, and reported results.
