Penetration of a projectile into an aluminum plate Abaqus

This project includes full video (step by step) – Cae file – inp file – Excel file – Paper

Description

Penetration of a projectile into an aluminum plate Abaqus

In this example, we intend to simulate the penetration of a projectile into an aluminum plate in the Abaqus software

In this example, the rigid projectile hits the aluminum plate with a high speed and Since the projectile moves at a very high speed, it penetrates the Aluminum plate

The type of Aluminum is AA5083-H116

Here, the effect of temperature on deformation has been considered. To do so, the thermal properties of Aluminum have been defined in the Abaqus software. This problem has been solved for different velocities of projectile. Actually, this problem is solved several times, and each time the velocity of Projectile changes accordingly

In this picture , the striking velocity is 286.4 m/s

In this picture , the striking velocity is 303 m/s

In this picture , the striking velocity is 357 m/s

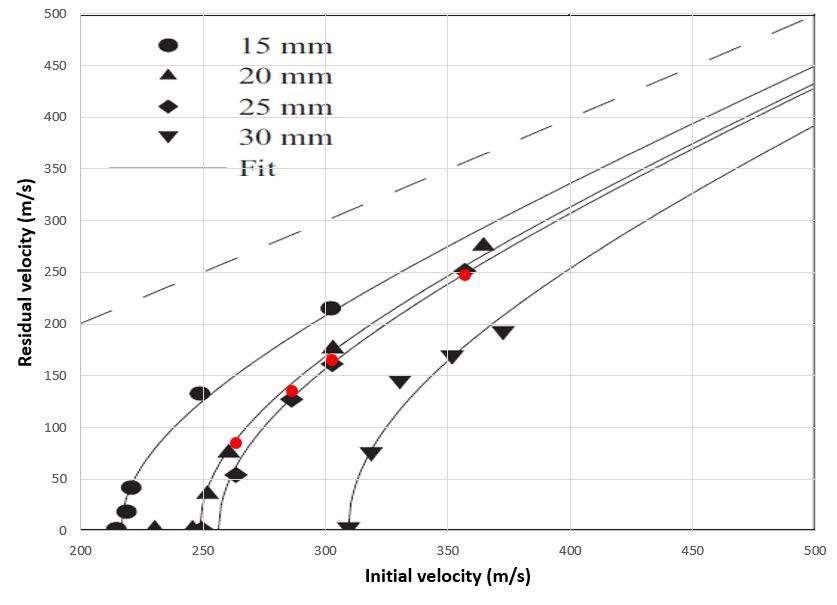

In this picture , the diagram of the residual velocity (final velocity) has been drawn based on the striking velocity (initial velocity) of projectile

This project has been validated, which means that the results obtained from Abaqus software are similar to the results of the article. In other words, this project is based on the article
