Pure torsional yielding damper under cyclic loading Abaqus

Product Overview

In this example, we intend to simulate a Pure Torsional Yielding Damper under cyclic loading in the Abaqus software.

The numerical model is developed to investigate the cyclic behavior, deformation, and hysteretic response of the pure torsional yielding damper.

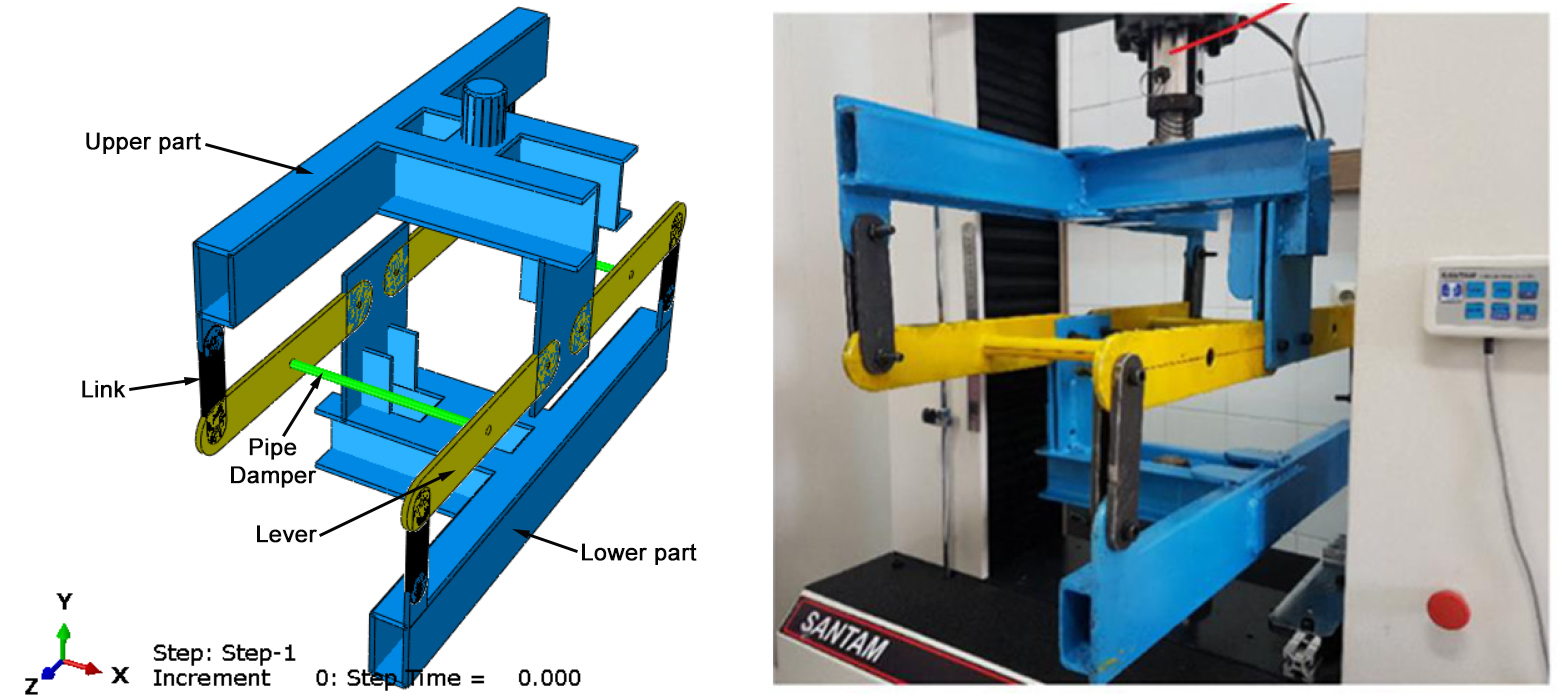

Laboratory and Abaqus Models

As you observe in the picture, the laboratory model is shown on the right, while the model simulated in the Abaqus software is shown on the left.

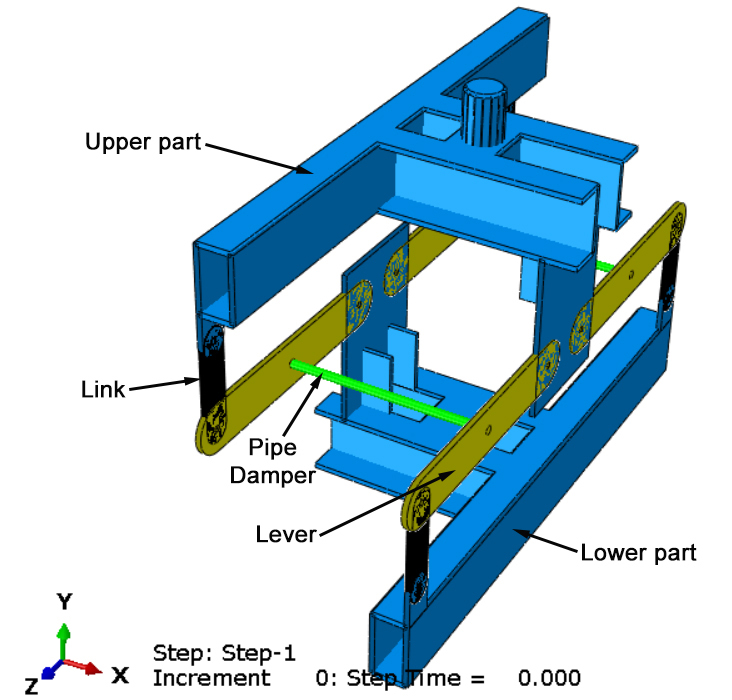

Model Components

As you observe in the picture, this model is composed of a Pipe Damper, Lever, Link, Lower Part, and Upper Part.

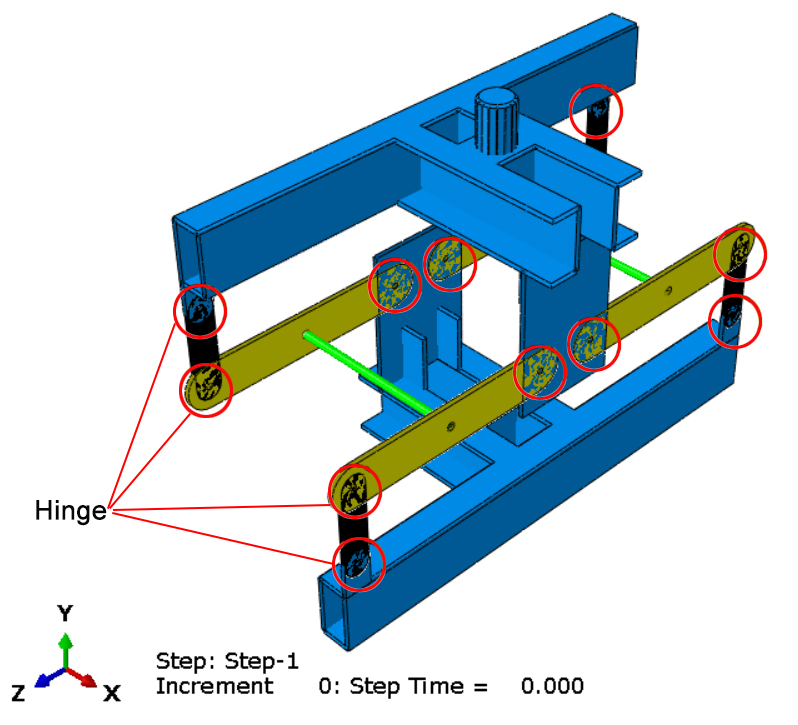

Hinges

In this model, the links, levers, upper part, and lower part have all been connected together using hinges.

A total of 12 hinges are used to connect the different parts of the model.

Cyclic Loading

In this problem, cyclic loading is applied to the model to investigate the hysteretic behavior of the pure torsional yielding damper.

The cyclic loading history is defined in Abaqus using the corresponding amplitude data.

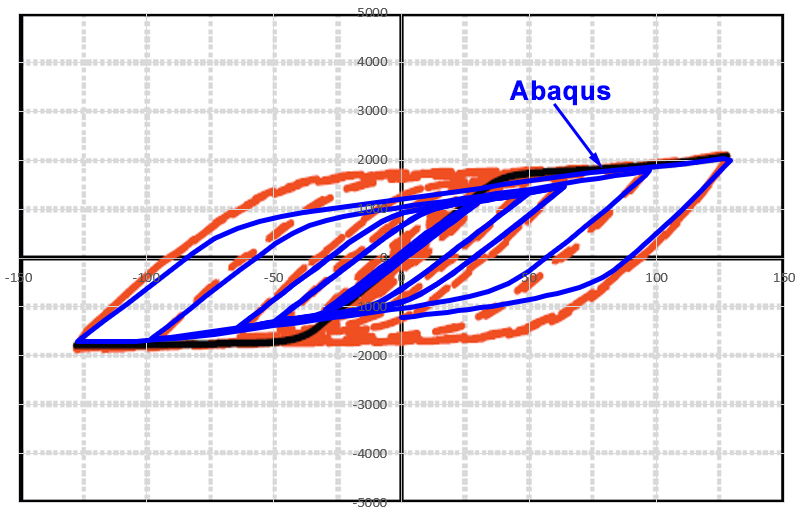

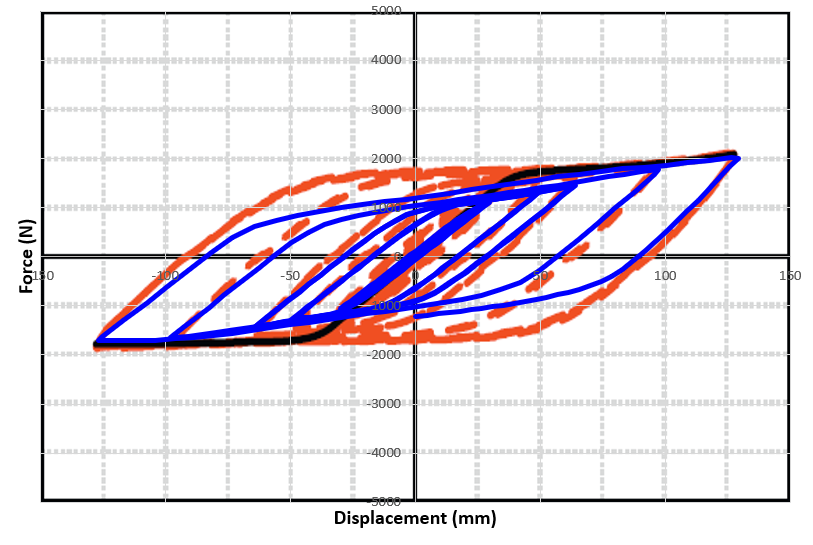

Force-Displacement Hysteresis Diagram

After applying the cyclic loading, the Force-Displacement hysteresis diagram is obtained from the Abaqus results.

As you observe in the picture, the Force-Displacement hysteresis diagram obtained from the Abaqus software is compared with the experimental results.

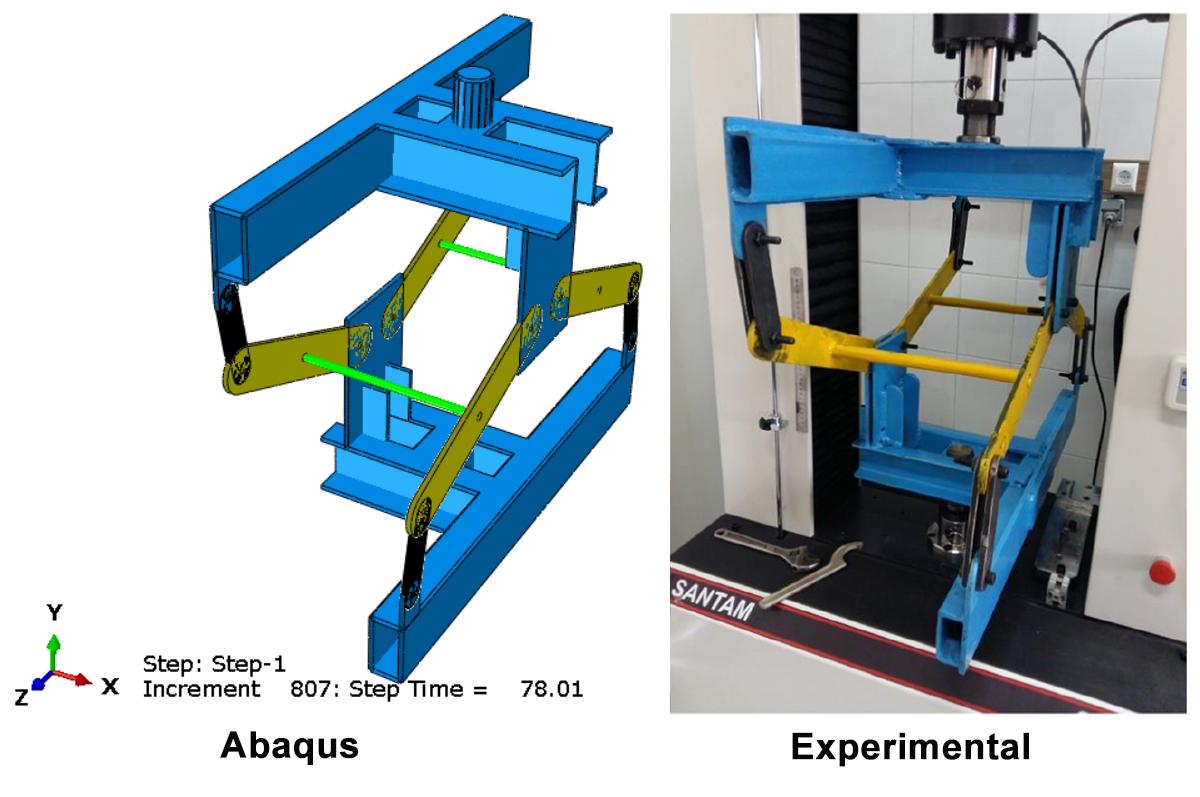

Deformation Comparison

The deformation obtained from the Abaqus software is compared with the deformation observed in the experimental test.

As you observe in the pictures, the deformation obtained from the numerical model is compared with the experimental results.

Deformation Under Cyclic Loading

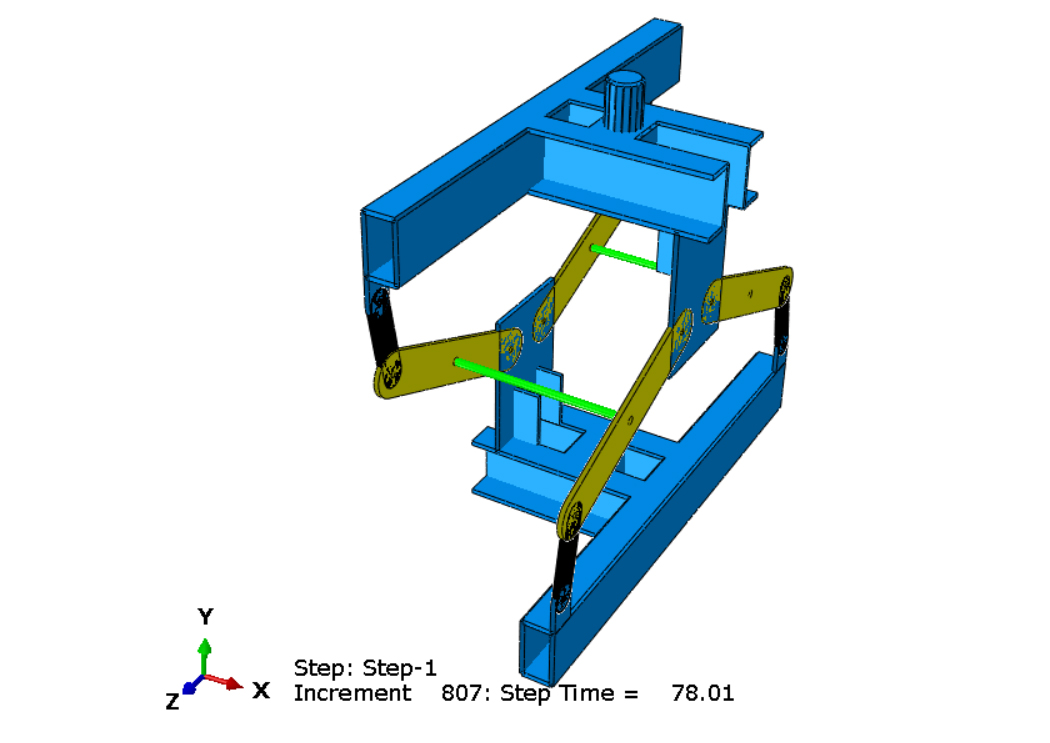

The deformation of the model under cyclic loading can be observed in the following picture.

Validation

This project has been validated, which means that the results obtained from the Abaqus software are similar to the results reported in the reference article.

In other words, this project is based on the reference article, and the numerical model has been developed to reproduce the experimental behavior of the pure torsional yielding damper under cyclic loading.

What You Will Learn

• How to model a pure torsional yielding damper in Abaqus.
• How to model the Pipe Damper, Lever, Link, Upper Part, and Lower Part.
• How to connect different components using hinges.
• How to define 12 hinges in the numerical model.
• How to define the material properties.
• How to define the boundary conditions.
• How to apply cyclic loading.
• How to define the cyclic loading amplitude.
• How to obtain the Displacement-Force hysteresis diagram.
• How to compare the Abaqus hysteresis diagram with experimental results.
• How to investigate the deformation of the model under cyclic loading.
• How to compare numerical deformation with experimental results.
• How to validate the numerical model using the reference article.

Key Features

• Pure Torsional Yielding Damper modeling in Abaqus.
• Pipe Damper, Lever, Link, Upper Part, and Lower Part modeling.
• Hinge connection modeling.
• 12 hinges used to connect the model components.
• Cyclic loading analysis.
• Displacement-Force hysteresis analysis.
• Comparison between Abaqus and experimental hysteresis results.
• Comparison of numerical and experimental deformation.
• Validation against the reference article.
• Complete Abaqus CAE file.
• Abaqus INP file.
• Excel file (Amplitude Loading).
• Excel file (Results).
• Reference research paper.
• Step-by-step video tutorial.

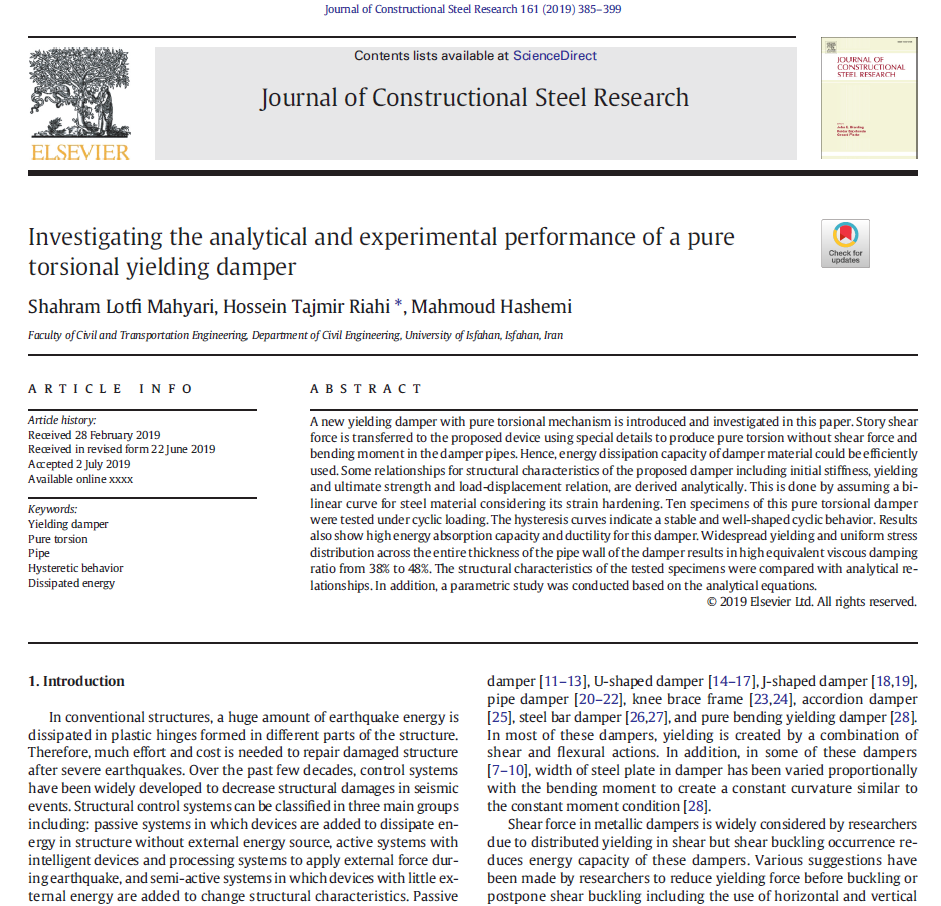

Reference

This project is based on the reference research article. The paper is included with the project files and can be used to review the experimental model, cyclic loading protocol, and reported results.
