RBS moment connection in box-column under cyclic loading Abaqus

Product Overview

In this project, an RBS moment connection in a box-column is modeled in Abaqus and its behavior under cyclic loading is investigated.

The numerical model is developed based on an experimental study reported in the reference paper. The Abaqus results are compared with the experimental results to evaluate the accuracy of the numerical model and its ability to reproduce the hysteretic behavior of the connection.

Model Description

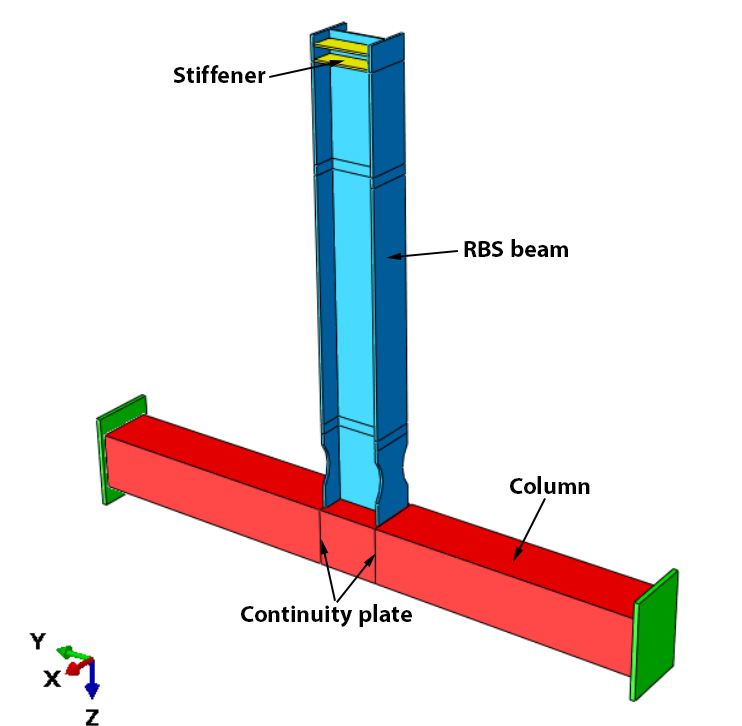

The model represents an RBS moment connection in a box-column. The main components of the model include the RBS beam, box-column, continuity plate, and stiffener.

The geometry and configuration of the structural components are defined according to the information provided in the reference experimental study. The required material properties, interactions, boundary conditions, and analysis settings are defined in Abaqus.

The numerical model is developed to investigate the behavior of the connection when subjected to repeated cyclic loading.

Cyclic Loading

A cyclic loading is applied to the top of the beam to investigate the behavior of the RBS moment connection under repeated loading and unloading cycles.

The loading history is defined using the Amplitude option in Abaqus based on the loading protocol used in the experimental study.

The resulting response of the connection is used to evaluate its hysteretic behavior under cyclic loading.

Results and Hysteresis Response

The Abaqus results are extracted and processed to evaluate the structural response of the RBS moment connection under cyclic loading.

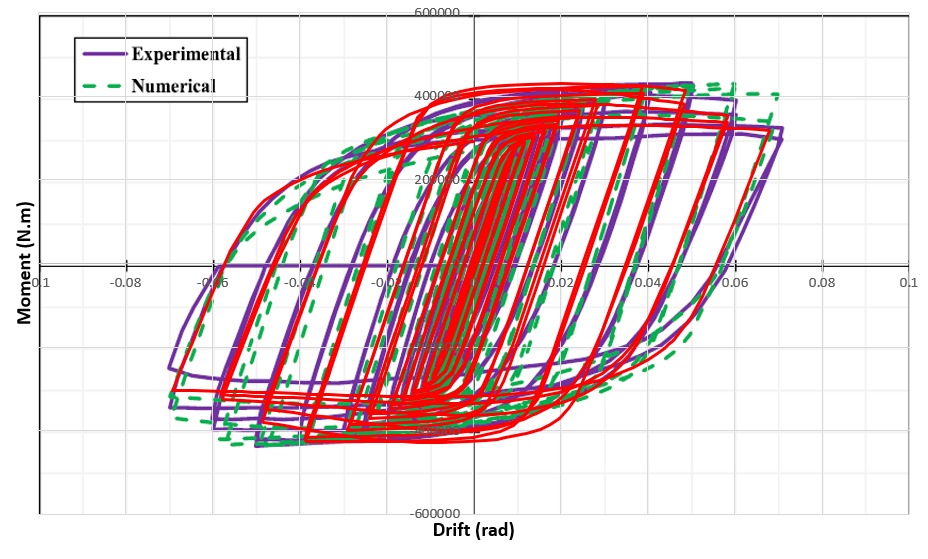

The Drift–Moment hysteresis diagram obtained from the Abaqus analysis is compared with the experimental results reported in the reference article.

This comparison shows how closely the numerical model reproduces the hysteretic response observed in the experimental study.

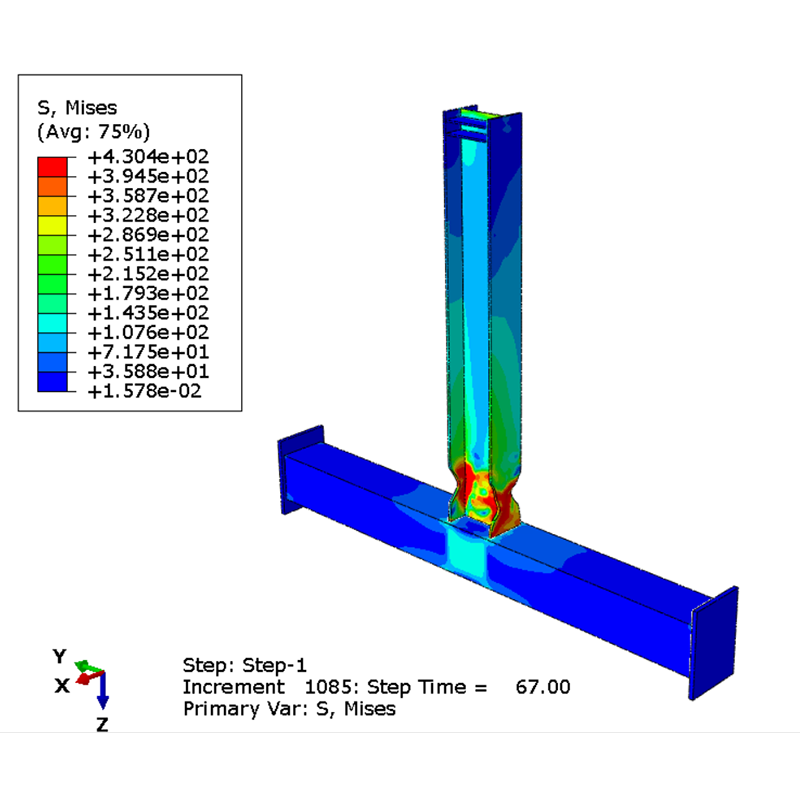

Deformation Under Cyclic Loading

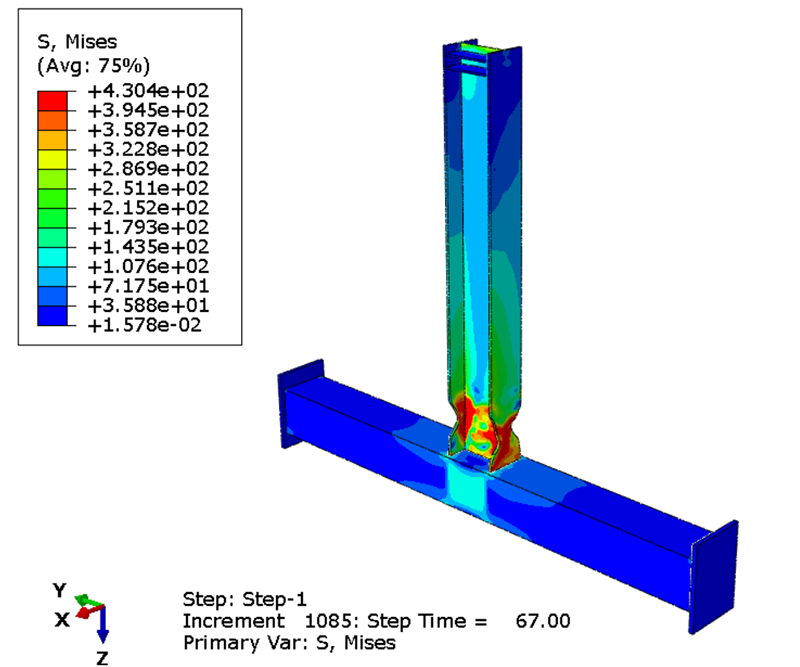

The deformation of the numerical model is investigated during the cyclic loading analysis. The Abaqus results can be used to observe the deformation and structural response of the RBS moment connection throughout the loading cycles.

Experimental Validation

The numerical results obtained from Abaqus are compared with the experimental results reported in the reference research paper.

The comparison focuses on the Drift–Moment hysteresis response of the connection under cyclic loading.

The numerical results show good agreement with the experimental results, demonstrating that the Abaqus model can reproduce the main characteristics of the experimental response.

Key Features

• Cyclic analysis of an RBS moment connection in a box-column.
• Nonlinear analysis under cyclic loading.
• RBS beam, box-column, continuity plate, and stiffener.
• Cyclic loading applied to the top of the beam.
• Drift–Moment hysteresis response.
• Comparison with experimental results.
• Validated Abaqus numerical model.
• Complete Abaqus model files.
• Excel file for amplitude loading.
• Excel file containing numerical results.
• Reference research paper.
• Step-by-step video tutorial.

What You Will Learn

• How to model an RBS moment connection in a box-column in Abaqus.
• How to define the geometry of the RBS beam, box-column, continuity plate, and stiffener.
• How to define the material properties of the structural components.
• How to define the interactions between the structural components.
• How to define appropriate boundary conditions for the model.
• How to apply cyclic loading to the top of the beam.
• How to define cyclic loading using the Amplitude option in Abaqus.
• How to perform nonlinear analysis under cyclic loading.
• How to obtain a Drift–Moment hysteresis diagram.
• How to extract and process Abaqus results using Excel.
• How to compare numerical and experimental results.

Reference

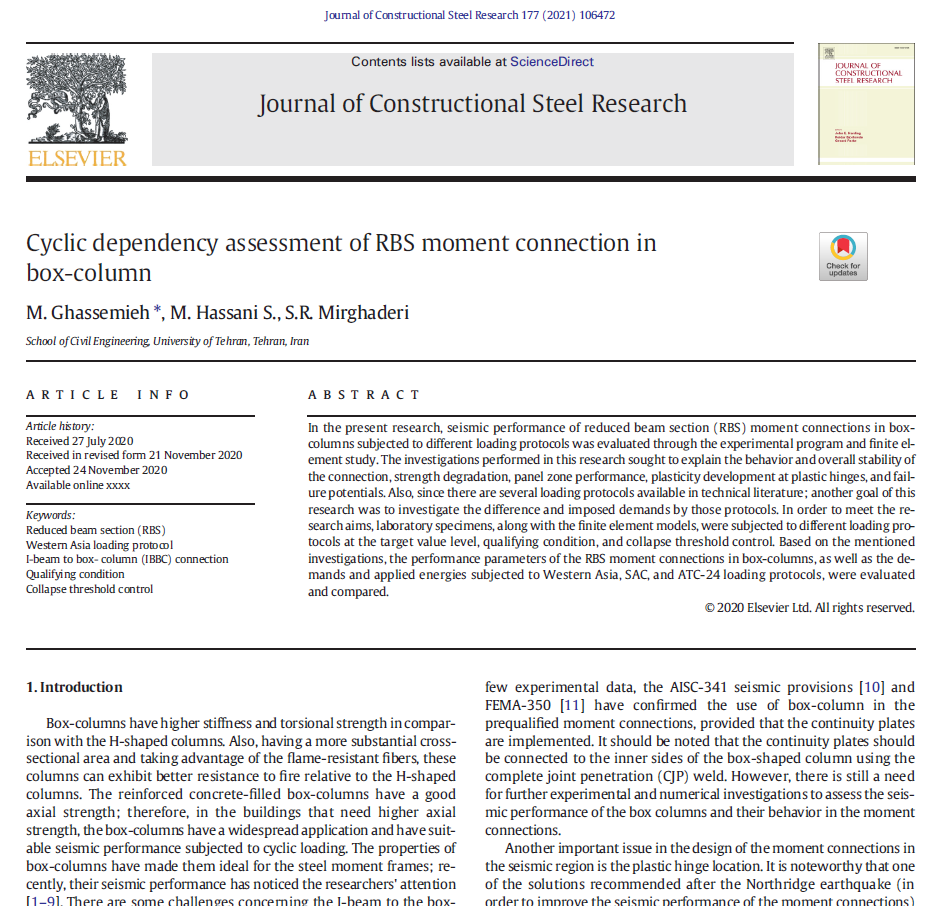

This project is based on the experimental study provided in the reference research paper.

The paper is included with the project files and can be used to review the experimental configuration, loading protocol, and reported results.
