RBS moment endplate connection under cyclic loading Abaqus

Product Overview

In this project, an RBS moment end plate connection is modeled in Abaqus and its behavior under cyclic loading is investigated.

The numerical model is developed based on an experimental study. The Abaqus results are compared with the experimental results to evaluate the accuracy of the numerical model and its ability to reproduce the behavior reported in the reference article.

Model Description

The model represents an RBS moment end plate connection subjected to cyclic loading.

As you observe in the picture, this model is composed of an RBS beam, column, continuity plate, bolt, extended end plate, doubler web plate, and stiffener.

The required material properties, interactions, boundary conditions, and analysis settings are defined in Abaqus to reproduce the behavior of the experimental connection.

Cyclic Loading

A cyclic loading is applied to the beam according to the loading protocol used in the experimental study.

The loading history is defined using the Amplitude option in Abaqus. The connection is then analyzed under repeated loading and unloading cycles.

Results and Hysteresis Response

The Abaqus results are extracted and processed to evaluate the structural response of the connection under cyclic loading.

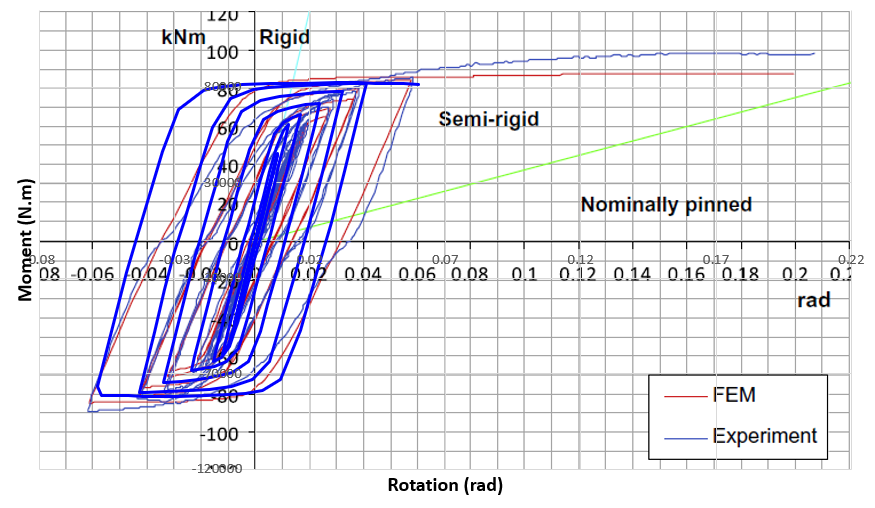

The resulting response is used to obtain the Moment–Rotation hysteresis diagram.

The Moment–Rotation diagram obtained from Abaqus is compared with the experimental results reported in the reference article.

Deformation Under Cyclic Loading

The deformation of the model under cyclic loading can be observed from the Abaqus results.

The numerical results allow the deformation and nonlinear behavior of the RBS moment end plate connection to be evaluated at different stages of the loading history.

Experimental Validation

The numerical results obtained from Abaqus are compared with the experimental results reported in the reference article.

The comparison focuses on the Moment–Rotation response and the overall structural behavior of the RBS moment end plate connection under cyclic loading.

This project has been validated, which means that the results obtained from Abaqus are similar to the results of the article. In other words, this project is based on the experimental study.

Key Features

• Numerical modeling of an RBS moment end plate connection.
• Modeling of the RBS beam and column.
• Modeling of the continuity plate.
• Modeling of bolts and the extended end plate.
• Modeling of the doubler web plate and stiffener.
• Cyclic analysis of the connection.
• Nonlinear analysis under cyclic loading.
• Moment–Rotation hysteresis analysis.
• Evaluation of deformation under cyclic loading.
• Comparison with experimental results.
• Validated Abaqus numerical model.
• Complete Abaqus model files.
• Excel file for amplitude loading.
• Excel file containing numerical results.
• Reference research paper.
• Step-by-step video tutorial.

What You Will Learn

• How to model an RBS moment end plate connection in Abaqus.
• How to define the geometry of the RBS beam and column.
• How to model the continuity plate.
• How to model bolts and an extended end plate.
• How to model the doubler web plate and stiffener.
• How to define the material properties of the model.
• How to define the required interactions and constraints.
• How to define the boundary conditions of the connection.
• How to apply cyclic loading to the beam.
• How to define cyclic loading using the Amplitude option in Abaqus.
• How to perform nonlinear analysis under cyclic loading.
• How to obtain a Moment–Rotation hysteresis diagram.
• How to evaluate the deformation of the connection under cyclic loading.
• How to extract and process Abaqus results using Excel.
• How to compare numerical and experimental results.

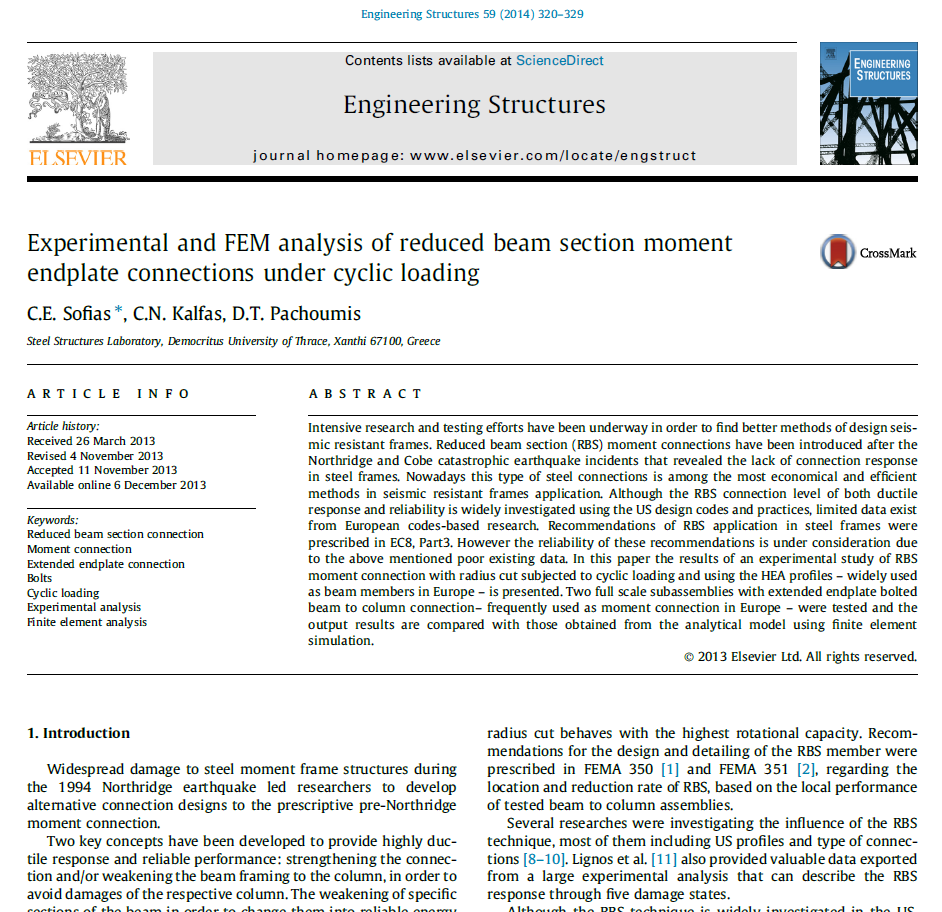

Reference

This project is based on the experimental study provided in the reference research paper. The paper is included with the project files and can be used to review the experimental configuration, loading protocol, and reported results.
