RWS (reduced web section) connection with elliptical opening under cyclic loading Abaqus

Product Overview

In this project, the seismic behavior of a Reduced Web Section (RWS) connection with an elliptical opening is investigated using Abaqus under cyclic loading.

The numerical model is developed based on the experimental study reported in the reference research paper. The Abaqus results are compared with the experimental results to evaluate the accuracy of the numerical model.

Model Description

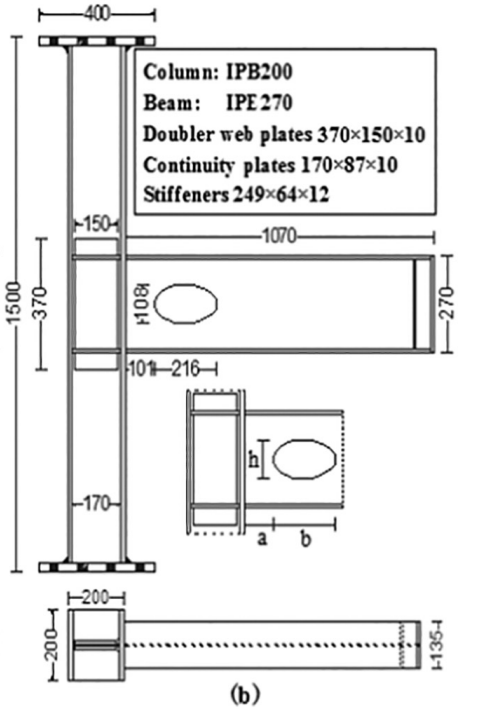

The model represents a Reduced Web Section (RWS) beam-to-column connection with an elliptical opening.

The beam web is modified by creating an elliptical opening in the reduced section. The geometry of the connection is defined according to the configuration of the experimental specimen reported in the reference paper.

The required material properties, interactions, boundary conditions, loading procedure, and analysis settings are defined in Abaqus to reproduce the behavior of the experimental connection.

Connection Details

The connection is designed with a reduced web section containing an elliptical opening. This configuration modifies the distribution of stresses and deformation in the beam near the connection region.

The geometry and dimensions of the opening are defined according to the experimental specimen used in the reference study.

Cyclic Loading

The connection is subjected to cyclic loading to investigate its seismic behavior.

The loading history is defined using the Amplitude option in Abaqus. The connection is then analyzed under repeated loading and unloading cycles.

The force and displacement response of the connection are recorded throughout the nonlinear analysis.

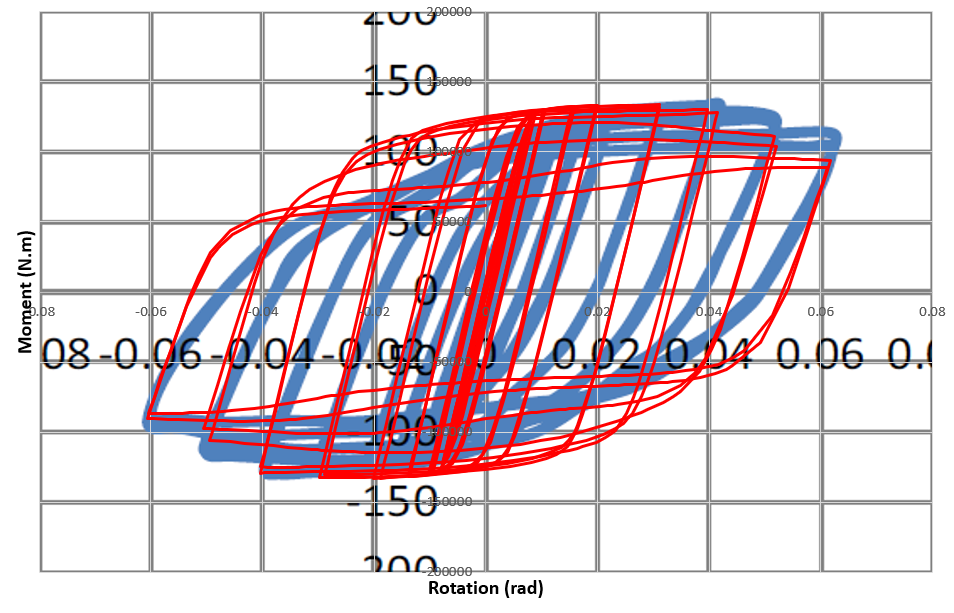

Hysteresis Response

The Abaqus results are extracted and processed to obtain the force–displacement hysteresis response of the connection.

The hysteresis curve is used to evaluate the behavior of the RWS connection during cyclic loading and to compare the numerical response with the experimental response.

Experimental Validation

The numerical results obtained from Abaqus are compared with the experimental results reported in the reference research paper.

The comparison focuses on the force–displacement hysteresis response and the overall structural behavior of the connection under cyclic loading.

The numerical model is developed based on the experimental study, allowing the Abaqus results to be evaluated against the laboratory results.

Key Features

• Reduced Web Section (RWS) connection modeling.
• Elliptical opening in the beam web.
• Nonlinear cyclic analysis.
• Seismic behavior investigation.
• Force–displacement hysteresis response.
• Comparison with experimental results.
• Complete Abaqus model files.
• Excel files for loading and numerical results.
• Reference research paper.
• Step-by-step video tutorial.

What You Will Learn

• How to model a Reduced Web Section (RWS) connection in Abaqus.
• How to create an elliptical opening in the beam web.
• How to define the geometry and material properties of the model.
• How to define interactions between the structural components.
• How to define appropriate boundary conditions.
• How to apply cyclic loading to the connection.
• How to define cyclic loading using the Amplitude option in Abaqus.
• How to perform nonlinear analysis under cyclic loading.
• How to obtain a force–displacement hysteresis curve.
• How to extract and process Abaqus results using Excel.
• How to compare numerical and experimental results.
• How to validate an Abaqus model using experimental results.

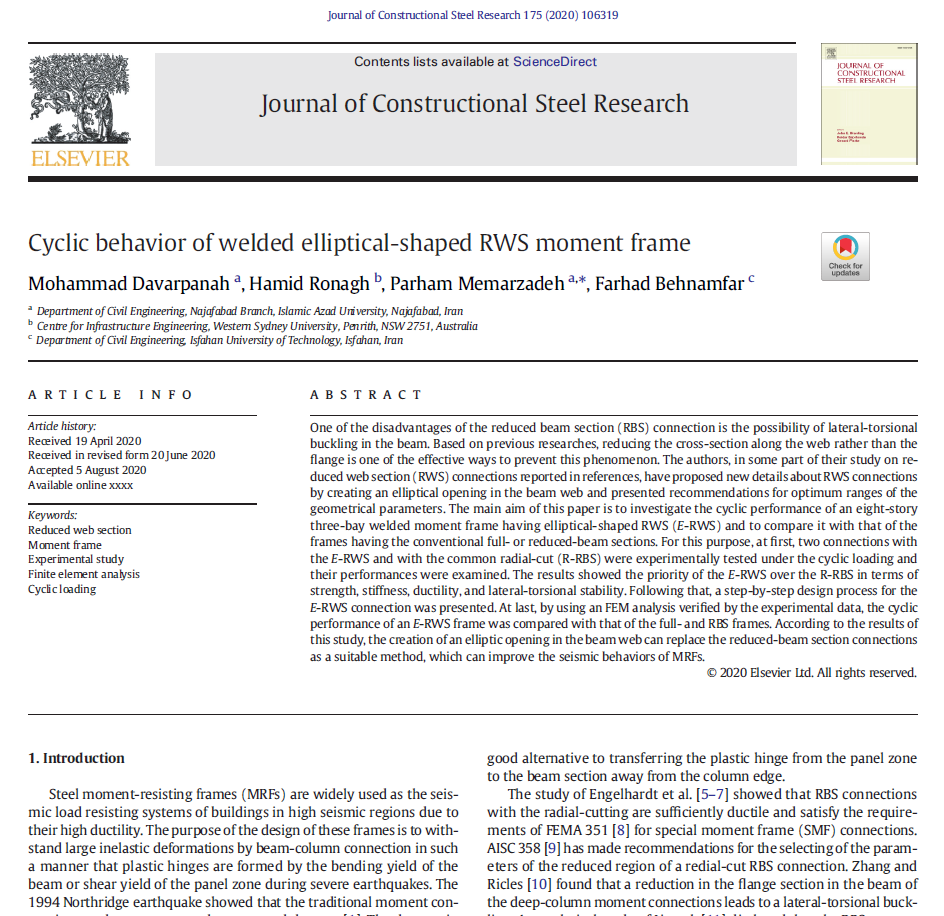

Reference

This project is based on the experimental study provided in the reference research paper. The paper is included with the project files and can be used to review the experimental specimen, connection configuration, cyclic loading protocol, and reported results.
