Product Overview
In this project, the seismic performance of a beam-to-column connection with an opening is investigated using Abaqus. The numerical model is developed based on an experimental study reported in the reference research paper.
The beam-to-column connection is subjected to cyclic loading, and the numerical results are compared with the experimental results to evaluate the accuracy of the Abaqus model.
Model Description

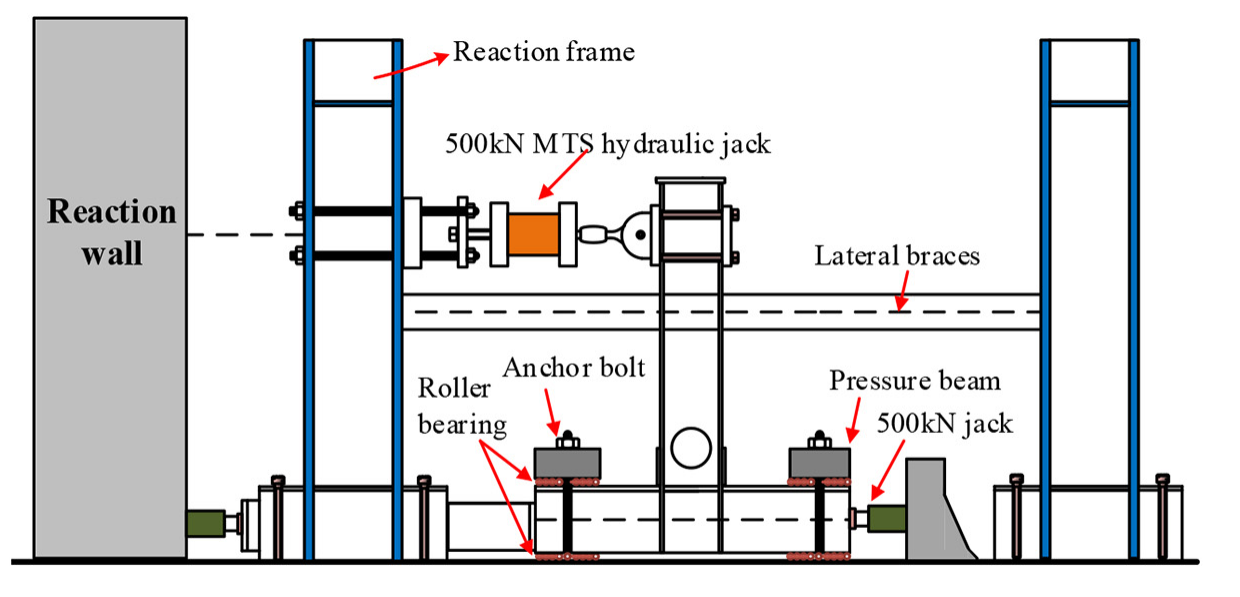

The model represents a beam-to-column connection with an opening based on the configuration of the experimental specimen reported in the reference study.
The geometry, material properties, interactions, boundary conditions, and analysis settings are defined in Abaqus to reproduce the behavior of the experimental connection.
The numerical model is subjected to cyclic loading at the end of the beam, allowing the nonlinear seismic response of the connection to be investigated.
Cyclic Loading
A cyclic loading protocol is applied to the end of the beam to investigate the seismic behavior of the connection.
The loading history is defined using the Amplitude option in Abaqus. The beam is subjected to repeated loading and unloading cycles according to the loading protocol used in the experimental study.
The resulting force and displacement values are then used to obtain the hysteresis response of the connection.
Buckling and Deformation
During the cyclic analysis, significant deformation and buckling develop in the beam.
The numerical results show that buckling occurs in both the beam flange and the beam web. The development of buckling affects the stiffness of the model and results in a reduction in the structural stiffness during the cyclic loading process.
Results and Hysteresis Response
The Abaqus results are extracted and processed to evaluate the response of the beam-to-column connection under cyclic loading.

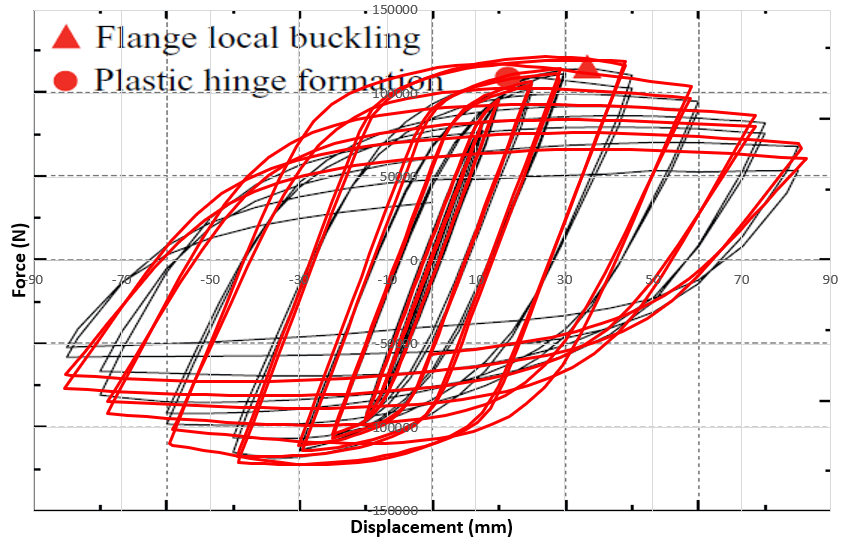

The force–displacement hysteresis diagram obtained from the Abaqus analysis is compared with the experimental results reported in the reference research paper.
The comparison provides an evaluation of the ability of the numerical model to reproduce the nonlinear response of the experimental connection.
Experimental Validation
The numerical results obtained from Abaqus are compared with the experimental results reported in the reference article.
The comparison focuses on the force–displacement hysteresis response and the deformation behavior of the connection during cyclic loading.
The numerical results show good agreement with the experimental results, demonstrating that the Abaqus model can reproduce the main characteristics of the experimental response.
Key Features
- Seismic analysis of a beam-to-column connection with an opening.
- Cyclic loading of the beam.
- Nonlinear analysis using Abaqus.
- Buckling of the beam flange and beam web.
- Force–displacement hysteresis response.
- Comparison with experimental results.
- Validated numerical model.
- Complete Abaqus model files.
- Excel file for amplitude loading.
- Excel file containing numerical results.
- Reference research paper.
- Step-by-step video tutorial.
What You Will Learn
- How to model a beam-to-column connection with an opening in Abaqus.
- How to define the geometry and material properties of the model.
- How to define the required interactions between the structural components.
- How to define boundary conditions for a beam-to-column connection.
- How to apply cyclic loading to the end of the beam.
- How to define cyclic loading using the Amplitude option in Abaqus.
- How to perform nonlinear analysis under cyclic loading.
- How to investigate buckling of the beam flange and beam web.
- How to obtain a force–displacement hysteresis diagram.
- How to extract and process Abaqus results using Excel.
- How to compare numerical and experimental results.
Reference

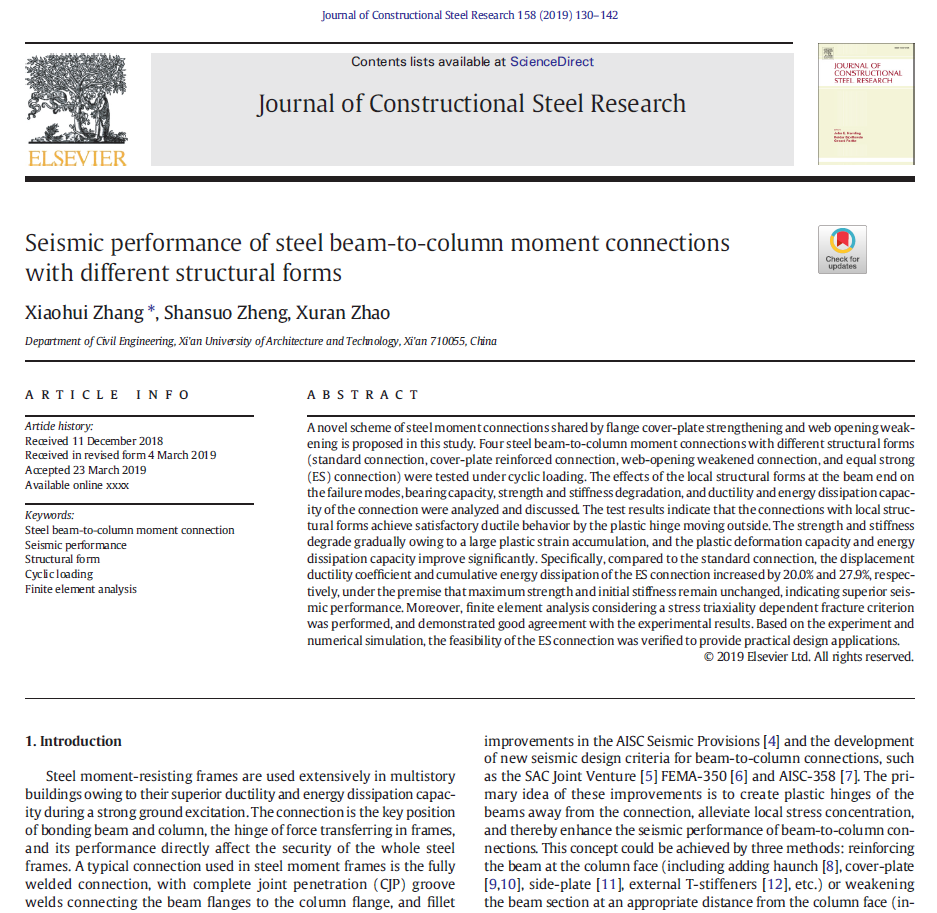

This project is based on the experimental research study used as the reference for the numerical simulation.
