Product Overview
In this example, we intend to simulate the shear-flexural yielding metallic damper under cyclic loading in Abaqus software.
Damper Components
As you observe in the picture, the yielding metallic damper is composed of a shear plate, flexural plate, end plate, and shear tab.
Cyclic Loading
In this problem, a cyclic loading is applied to the damper, and following that its hysteresis diagram will be drawn.
Deformation
In this picture, the deformation of the yielding damper undergoing cyclic loading can be observed.
Hysteresis Diagram

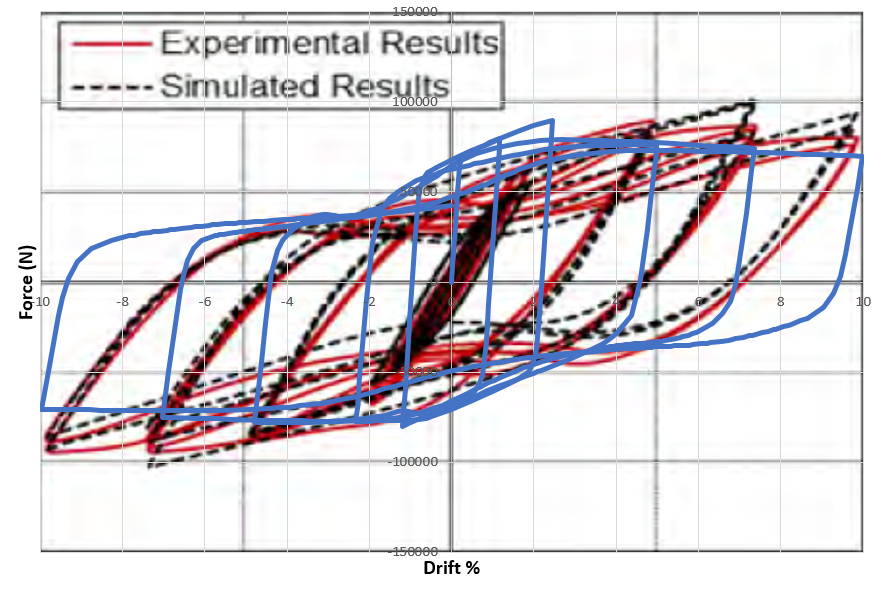

Following the application of cyclic loading, the hysteresis diagram is obtained from the Abaqus results.
Comparison with Experimental Results
The results gained from the Abaqus software have been compared with the experimental results.
Validation
This project has been validated, which means that the results obtained from the Abaqus software are similar to the results of the article.
In other words, this project is based on the reference article.
Reference

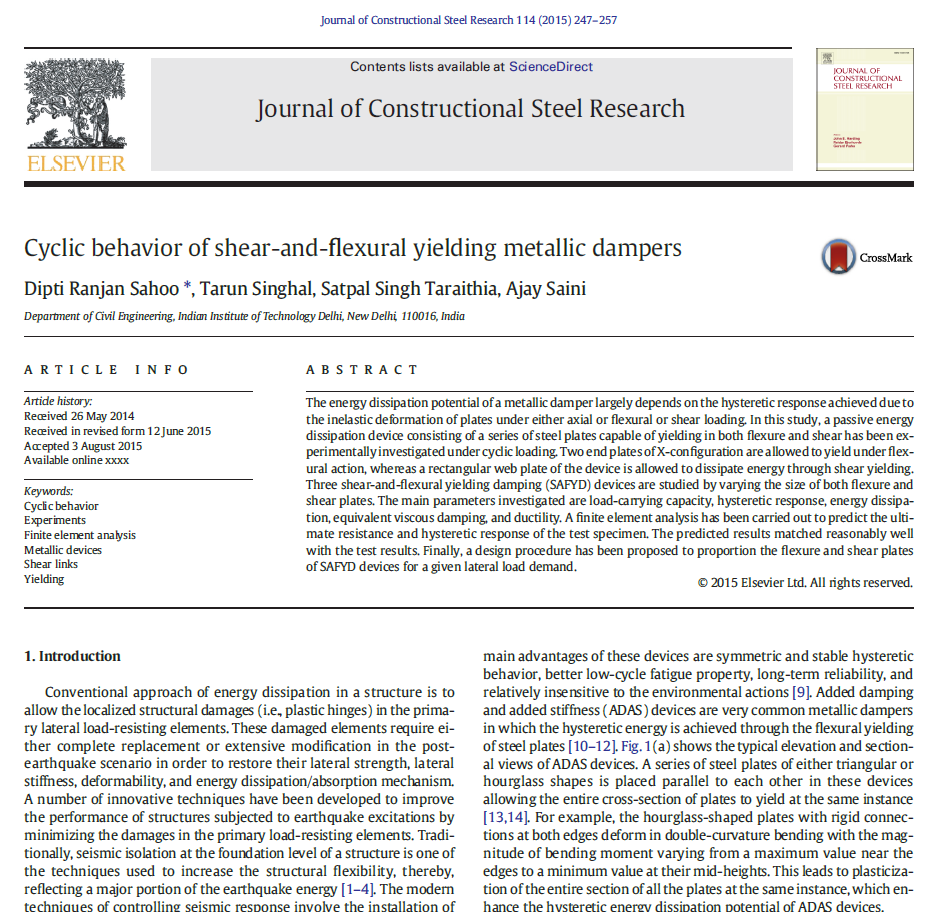

This project is based on the reference research article. The research paper is included with the project files and can be used to review the experimental model, cyclic loading, and reported results.
What You Will Learn
- How to model a shear-flexural yielding metallic damper in Abaqus.
- How to model the shear plate and flexural plate.
- How to model the end plate and shear tab.
- How to define the material properties.
- How to define the boundary conditions.
- How to apply cyclic loading to the end of the beam.
- How to define the cyclic loading amplitude.
- How to investigate the deformation of the yielding damper.
- How to obtain the hysteresis diagram.
- How to compare Abaqus results with experimental results.
- How to validate the numerical model using the reference article.
Key Features
- Shear-flexural yielding metallic damper modeling in Abaqus.
- Shear plate and flexural plate modeling.
- End plate and shear tab modeling.
- Cyclic loading analysis.
- Hysteresis analysis.
- Deformation analysis of the yielding damper.
- Comparison between Abaqus and experimental results.
- Validation against the reference article.
- Complete Abaqus CAE file.
- Abaqus INP file.
- Excel file (Amplitude Loading).
- Excel file (Results).
- Reference research paper.
- Step-by-step video tutorial.
