Steel plate shear wall with two rectangular openings under cyclic loading Abaqus

Product Overview

In this project, a steel plate shear wall with two rectangular openings is modeled in Abaqus and its behavior under cyclic loading is investigated.

The numerical model is developed based on an experimental study reported in the reference paper. The Abaqus results are compared with the laboratory results to evaluate the accuracy of the numerical model and its ability to reproduce the structural response observed in the experiment.

Model Description

The model represents a steel plate shear wall with two rectangular openings based on the configuration of the experimental specimen reported in the reference study.

The geometry, material properties, interactions, boundary conditions, and analysis settings are defined in Abaqus according to the information provided in the reference paper.

The numerical model is developed to reproduce the behavior of the laboratory specimen under cyclic loading.

Experimental Test Setup

The numerical model is based on the experimental specimen and test configuration reported in the reference research paper.

The experimental setup is used as the basis for defining the boundary conditions and cyclic loading applied to the numerical model.

Laboratory Model

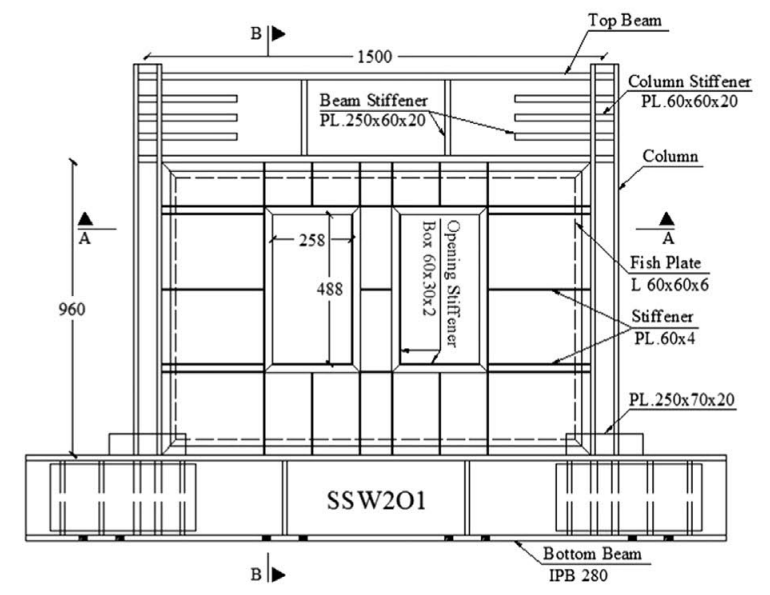

The laboratory specimen consists of a steel plate shear wall with two rectangular openings. The main dimensions and structural components are modeled in Abaqus according to the experimental study.

Buckling Analysis and Initial Imperfection

The first part of the analysis consists of a buckling analysis of the steel plate shear wall.

The buckling modes are extracted from the Abaqus analysis and are subsequently used to define the initial geometric imperfection of the model.

Introducing the initial imperfection helps the numerical model better represent the initial geometric condition of the experimental specimen.

Cyclic Loading

After the buckling analysis, cyclic loading is applied to the top beam of the steel plate shear wall.

The loading history is defined according to the experimental loading protocol, and the model is analyzed under repeated loading and unloading cycles.

The cyclic loading is used to investigate the nonlinear structural response of the steel plate shear wall with two rectangular openings.

Hysteresis Analysis

The second part of the project consists of the hysteresis analysis of the model under cyclic loading.

The force and displacement data obtained from the Abaqus analysis are extracted and processed to generate the force–displacement hysteresis diagram.

The numerical hysteresis response is then compared with the laboratory results reported in the reference paper.

Results and Experimental Comparison

The Abaqus results are extracted and processed to evaluate the structural response of the steel plate shear wall under cyclic loading.

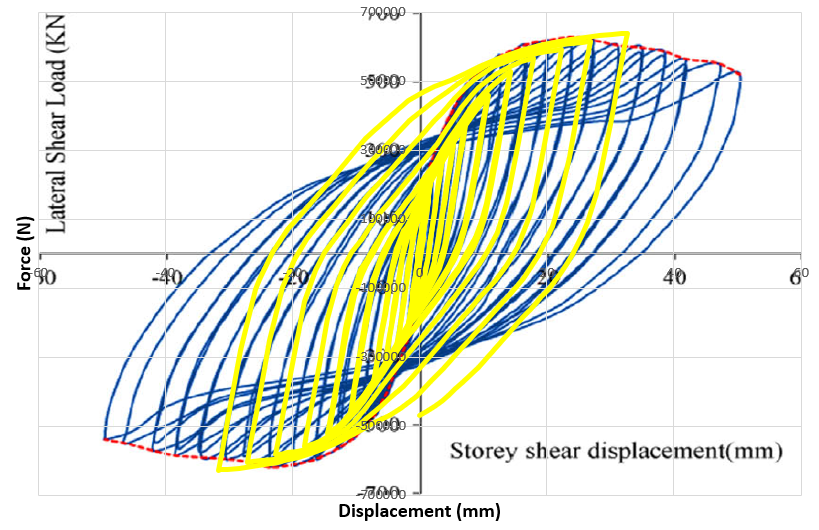

The force–displacement hysteresis diagram obtained from the numerical analysis is compared with the corresponding laboratory results.

The comparison demonstrates the capability of the numerical model to reproduce the main characteristics of the experimental response.

Experimental Validation

This project has been validated against the experimental results reported in the reference research paper.

The validation focuses on the hysteresis response of the steel plate shear wall with two rectangular openings under cyclic loading.

The numerical results obtained from Abaqus show good agreement with the laboratory results reported in the reference study.

Key Features

• Numerical simulation of a steel plate shear wall with two rectangular openings.
• Buckling analysis of the steel plate shear wall.
• Extraction of buckling modes.
• Initial geometric imperfection based on the buckling modes.
• Nonlinear analysis under cyclic loading.
• Cyclic loading applied to the top beam.
• Force–displacement hysteresis response.
• Comparison with laboratory results.
• Validated Abaqus model.
• Complete Abaqus model files.
• Excel file for amplitude loading.
• Excel file containing numerical results.
• Reference research paper.
• Step-by-step video tutorial.

What You Will Learn

• How to model a steel plate shear wall with two rectangular openings in Abaqus.
• How to define the geometry and material properties of the model.
• How to define the required interactions and boundary conditions.
• How to perform a buckling analysis.
• How to extract buckling modes from Abaqus.
• How to use buckling modes to define an initial geometric imperfection.
• How to apply cyclic loading to the top beam.
• How to perform nonlinear analysis under cyclic loading.
• How to obtain the force–displacement hysteresis diagram.
• How to extract and process Abaqus results using Excel.
• How to compare numerical and laboratory results.

Reference

This project is based on the experimental study used to investigate the behavior of a steel plate shear wall with two rectangular openings under cyclic loading.

The reference paper is included with the project files and can be used to review the experimental specimen, test setup, loading protocol, and reported results.
