Three-story shear wall undergoing a cyclic loading in the Abaqus software

Product Overview

In this project, a three-story steel plate shear wall is modeled in Abaqus and its structural behavior under cyclic loading is investigated.

The Abaqus results are compared with the laboratory results reported in the reference article to evaluate the accuracy of the numerical model.

Model Description

The model represents a three-story steel plate shear wall consisting of two columns, three beams, three steel infill plates, and several stiffeners.

The numerical model is developed according to the configuration described in the reference research article.

The geometry, material properties, interactions, boundary conditions, and analysis settings are defined in Abaqus to reproduce the behavior of the laboratory specimen.

Buckling Analysis and Initial Imperfection

The analysis consists of two main parts: buckling analysis and hysteresis analysis.

First, a buckling analysis is performed to determine the buckling modes of the three-story shear wall.

The obtained buckling modes are then used to define an initial geometric imperfection in the model. This procedure helps the numerical model better represent the initial imperfections of the laboratory specimen.

Cyclic Loading

A cyclic loading is applied to the top beam of the three-story shear wall according to the loading procedure used in the reference study.

The loading history is defined using the Amplitude option in Abaqus. The structure is subjected to repeated loading and unloading cycles to investigate its nonlinear response.

The applied loading and corresponding displacement response are recorded throughout the analysis.

Deformation and Structural Response

The deformation of the three-story shear wall is investigated during the cyclic analysis.

The numerical deformation obtained from Abaqus is compared with the deformation observed in the laboratory specimen.

The comparison provides an indication of the accuracy of the numerical model in reproducing the structural behavior of the tested shear wall.

Results and Hysteresis Response

The Abaqus results are extracted and processed to evaluate the structural response of the three-story shear wall under cyclic loading.

The force–displacement hysteresis curve is obtained from the numerical analysis and compared with the corresponding laboratory results reported in the reference article.

The numerical hysteresis response shows good agreement with the laboratory results, demonstrating the accuracy of the developed Abaqus model.

Experimental Validation

The numerical results obtained from Abaqus are compared with the laboratory results reported in the reference research paper.

The comparison focuses on the deformation and force–displacement hysteresis response of the three-story steel plate shear wall.

The close agreement between the numerical and laboratory results indicates that the developed Abaqus model can properly reproduce the behavior of the investigated shear wall.

Key Features

• Three-story steel plate shear wall model.
• Three steel infill plates and several stiffeners.
• Buckling analysis and extraction of buckling modes.
• Initial geometric imperfection based on buckling modes.
• Nonlinear cyclic analysis.
• Cyclic loading applied to the top beam.
• Force–displacement hysteresis response.
• Comparison with laboratory results.
• Complete Abaqus model files.
• Excel file for cyclic loading data.
• Excel file containing numerical results.
• Reference research paper.
• Step-by-step video tutorial.

What You Will Learn

• How to model a three-story steel plate shear wall in Abaqus.
• How to define the geometry and material properties of the model.
• How to model the columns, beams, steel plates, and stiffeners.
• How to define the required interactions and constraints.
• How to define the boundary conditions of the shear wall.
• How to perform a buckling analysis.
• How to extract buckling modes from Abaqus.
• How to introduce an initial geometric imperfection using buckling modes.
• How to define cyclic loading using the Amplitude option in Abaqus.
• How to apply cyclic loading to the top beam.
• How to perform nonlinear analysis under cyclic loading.
• How to obtain a force–displacement hysteresis curve.
• How to extract and process Abaqus results using Excel.
• How to compare numerical and laboratory results.

Reference

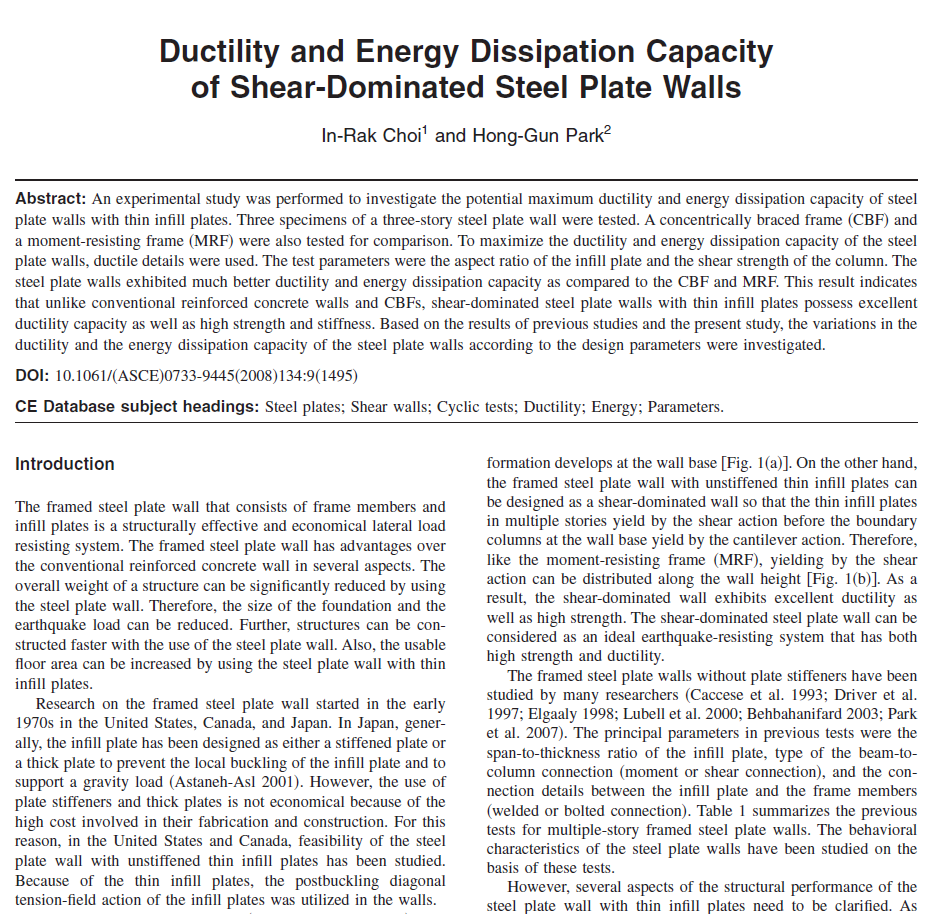

This project is based on the research article titled "Ductility and Energy Dissipation Capacity of Shear-dominated Steel Plate Walls."

The reference paper is included with the project files and can be used to review the experimental configuration, loading procedure, and reported results.
